SELECT A DIAGRAM

01 - Cover


02 - Door Parts

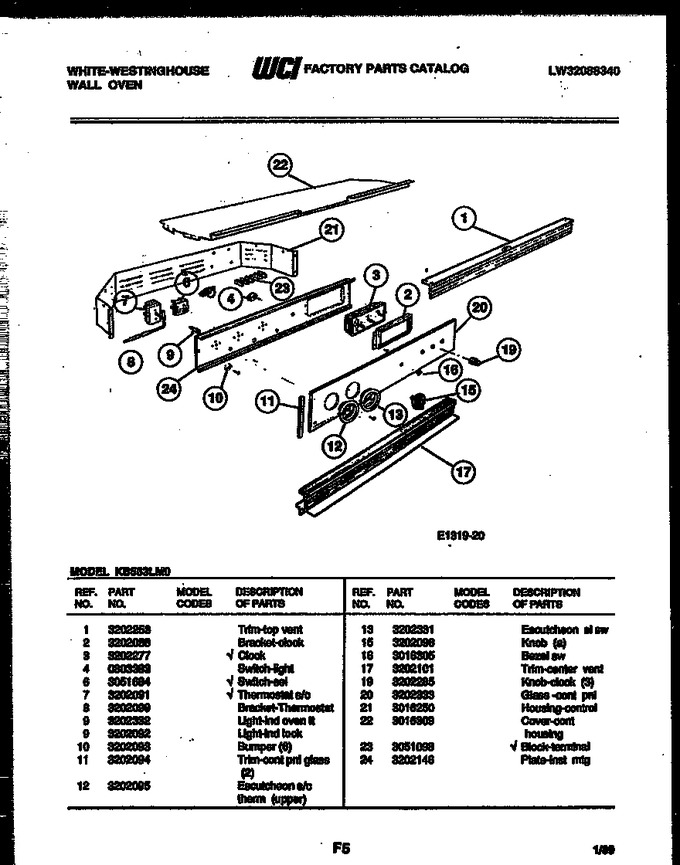

03 - Control Panel


04 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202253		Trim-top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3202277		Clock		Appelez-nous	-
4	0803383		Switch-light		Appelez-nous	-
6	3051684		Switch-sel		Appelez-nous	-
7	3202091		Thermostat S/c		Appelez-nous	-
8	3202099		Bracket-thermostat		Appelez-nous	-
9	3202092		Light-ind. Lock		Appelez-nous	-
9	3202332		Light-ind Oven Lt		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cont.pnl Glass (2)		Appelez-nous	-
12	3202095		Escutcheon S/c Therm. (upper)		Appelez-nous	-
13	3202331		Escutcheon Sl Sw		Appelez-nous	-
15	3202098		Knob (a)		Appelez-nous	-
16	3016305		Bezel-sw.		Appelez-nous	-
17	3202101		Trim-center Vent		Appelez-nous	-
19	3202285		Knob-clock (3)		Appelez-nous	-
20	3202333		Glass-cont Pnl		Appelez-nous	-
21	3016250		Housing, Control		Appelez-nous	-
22	3016309		Cover - Cont Housing		Appelez-nous	-
23	3051098		Block Terminal		Appelez-nous	-
24	3202146		Plate-inst Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
