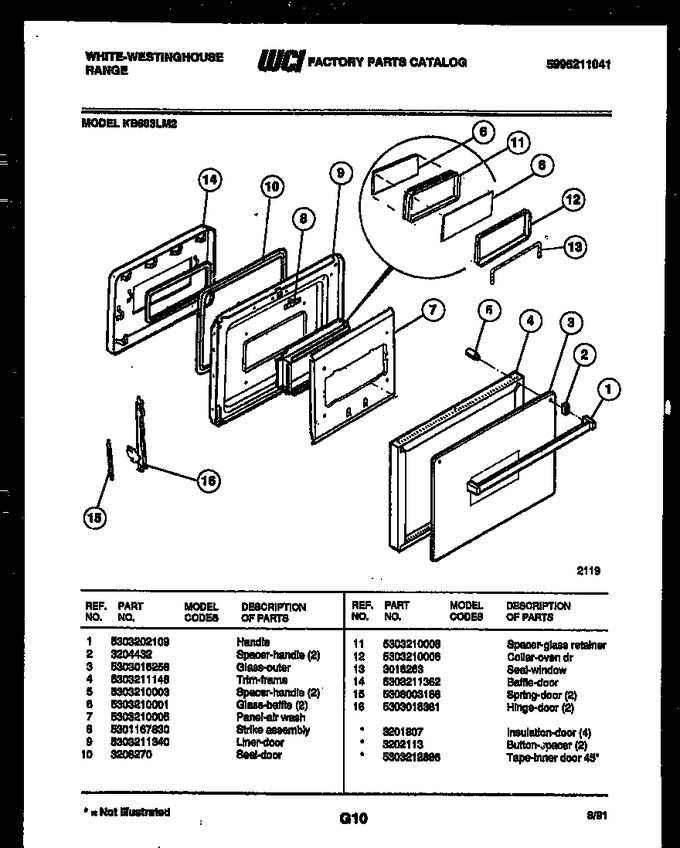

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303202109		Handle		Appelez-nous	-
2	3204432		Spacer-handle (2)		Appelez-nous	-
3	5303016258		Glass-outer		Appelez-nous	-
4	5303211148		Trim - Frame		Appelez-nous	-
5	5303210003		Spacer - Handle (2)		Appelez-nous	-
6	5303210001		Glass - Baffle (2)		Appelez-nous	-
7	5303210005		Panel - Air Wash		Appelez-nous	-
8	5301167830		Strike, Assembly		Appelez-nous	-
9	5303211340		Liner - Door		Appelez-nous	-
10	3206270		Seal - Door		Appelez-nous	-
11	5303210008		Spacer-glass Retainer		Appelez-nous	-
12	5303210006		Collar-oven Dr		Appelez-nous	-
13	3016263		Seal - Window				$ 66.15
14	5303211362		Baffle - Door		Appelez-nous	-
15	5308003186		Spring - Door (2)		Appelez-nous	-
16	5303018381		Hinge - Door (2)				$ 145.85
*24840	3202113		Button - Spacer (2)		Appelez-nous	-
*24840	3201807		Insulation - Door (4)		Appelez-nous	-
*24840	5303212886		Tape-inner Door 45``		Appelez-nous	-
