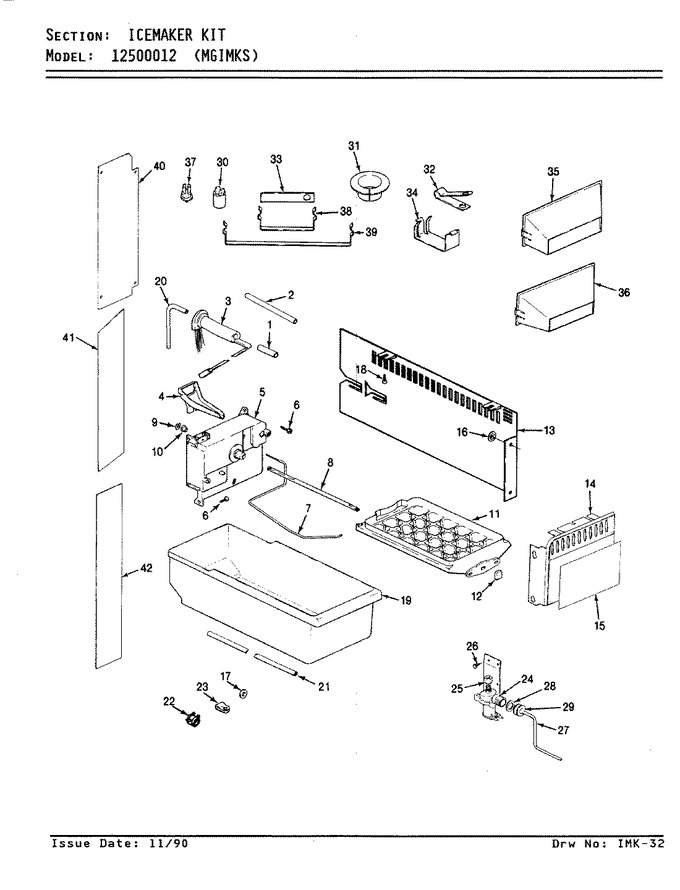

01 - Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58461-3 | Tube, Fill |
|
- | |||||
| 2 | 58461-2 | Tube, Fill |
|
- | |||||
| 3 | 58397-3 | Wire Harness |
|
- | |||||
| 3 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 4 | 405009-103 | Screw |
|
- | |||||
| 4 | 53748-1 | Spout, Fill |
|
- | |||||
| 5 | RA43714-8 | Mechanism, Ice Maker |
|
- | |||||
| 6 | WP3196163 | Screw (Replaces: 402068-103) |
|
$ 6.26 | |||||
| 7 | 52307-2 | Arm, Sensor |
|
- | |||||
| 8 | 65319-1 | Shaft, Drive |
|
- | |||||
| 9 | 58706-1 | Ring, Retainer |
|
- | |||||
| 10 | 65317-1 | Spacer |
|
- | |||||
| 11 | WP59688-1A | Tray, Ice (Replaces: 59688-1) |
|
$ 18.71 | |||||
| 12 | 65318-1 | Clip, Drive Shaft |
|
$ 23.83 | |||||
| 13 | 59315-2 | Im Side |
|
- | |||||
| 14 | 65069-6 | Front |
|
- | |||||
| 15 | 65283-8 | Trim |
|
- | |||||
| 16 | 431033-501 | Nut, Push-on |
|
- | |||||
| 17 | 420052-900 | Washer |
|
- | |||||
| 17 | 420051-900 | Washer |
|
- | |||||
| 18 | 400084-103 | Screw |
|
- | |||||
| 19 | 66592-1 | Pan |
|
- | |||||
| 20 | 66759-1 | Tube |
|
- | |||||
| 21 | WPB5705307 | Tube (Replaces: 55602-4) |
|
$ 11.19 | |||||
| 22 | 60333-1 | Clamp, Spring |
|
- | |||||
| 23 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 23 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 24 | 4318047 | Valve (Replaces: 55996-5) |
|
Immediately | $ 66.68 | ||||
| 25 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 26 | WP250830 | Screw (Replaces: 401017-1) |
|
$ 7.16 | |||||
| 27 | 53855-3 | Inlet |
|
- | |||||
| 28 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 29 | 24685-1 | Nut, Inlet Tubing |
|
- | |||||
| 30 | 19530-20 | Mtg.stud |
|
- | |||||
| 31 | 53122-4 | Grommet |
|
- | |||||
| 32 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) |
|
$ 10.06 | |||||
| 33 | 58443-1 | Clamp |
|
- | |||||
| 33 | 405012-103 | Screw |
|
- | |||||
| 34 | 57112-1 | Clip |
|
- | |||||
| 35 | 65652-1 | Im Duct |
|
- | |||||
| 36 | 65653-1 | Im Duct |
|
- | |||||
| 37 | 53914-2 | Stud |
|
- | |||||
| 38 | 54674-1 | Clip |
|
- | |||||
| 39 | 54674-2 | Clip |
|
- | |||||
| 40 | 66378-1 | Cover |
|
- | |||||
| 41 | 66379-1 | Cover |
|
- | |||||
| 42 | 66380-1 | Cover |
|
- | |||||
| 42 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 |
