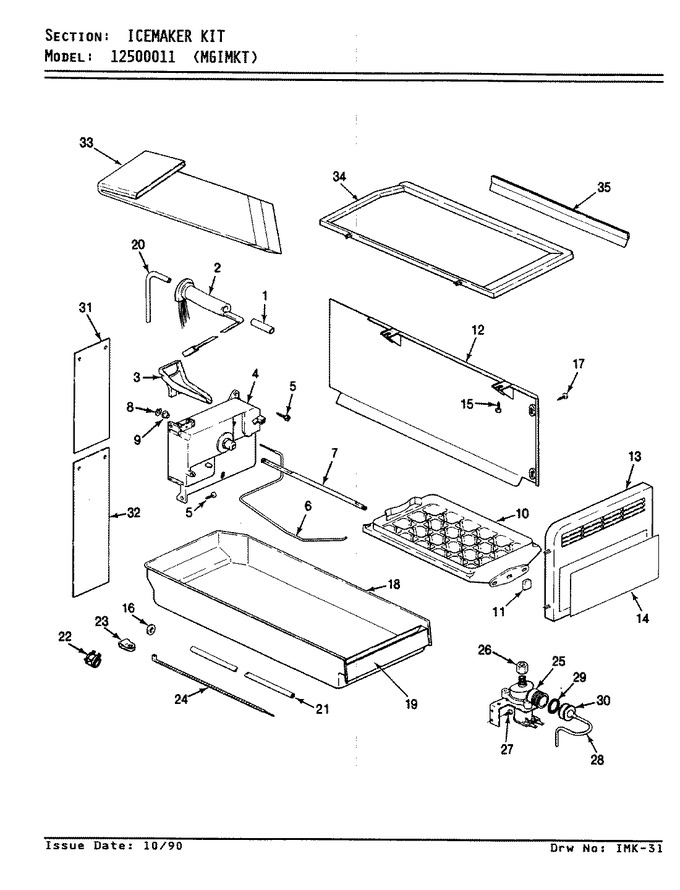

01 - Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58461-3 | Tube, Fill |
|
- | |||||
| 2 | WP67006908 | Screw (Replaces: 400022-1) |
|
Immediately | $ 7.16 | ||||
| 2 | 60198-1 | Wire Harness |
|
- | |||||
| 3 | 405009-103 | Screw |
|
- | |||||
| 3 | 53748-1 | Spout, Fill |
|
- | |||||
| 4 | RA43714-8 | Mechanism, Ice Maker |
|
- | |||||
| 5 | 400018-103 | Screw |
|
- | |||||
| 6 | 60619-1 | Sensor Arm |
|
- | |||||
| 6 | 52307-1 | Sensor Arm |
|
- | |||||
| 6 | 60619-2 | Sensor Arm |
|
- | |||||
| 7 | 65319-1 | Shaft, Drive |
|
- | |||||
| 8 | 58706-1 | Ring, Retainer |
|
- | |||||
| 9 | 65317-1 | Spacer |
|
- | |||||
| 10 | WP59688-1A | Tray, Ice (Replaces: 59688-1) |
|
$ 18.71 | |||||
| 11 | 65318-1 | Clip, Drive Shaft |
|
$ 23.83 | |||||
| 12 | 60426-1 | Side, Ice Maker Enclosure |
|
- | |||||
| 13 | 65070-1 | Front, Ice Maker Enclosure |
|
- | |||||
| 14 | 60421-17 | Trim |
|
- | |||||
| 15 | 400018-103 | Screw |
|
- | |||||
| 16 | 420051-900 | Washer |
|
- | |||||
| 16 | 420052-900 | Washer |
|
- | |||||
| 17 | W11233072 | Screw (Replaces: 402019-103) |
|
Immediately | $ 12.62 | ||||
| 18 | 60588-1 | Pan, Storage |
|
- | |||||
| 18 | 60653-1 | Pan, Ice |
|
- | |||||
| 18 | 66592-1 | Pan |
|
- | |||||
| 19 | 60132-19 | Handle |
|
- | |||||
| 20 | 66759-2 | Feeder Tube |
|
- | |||||
| 21 | WPB5705307 | Tube (Replaces: 55602-1) |
|
$ 11.19 | |||||
| 22 | 60333-1 | Clamp, Spring |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 23 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 24 | WP2205813 | Wire Tie (Replaces: 66223-1) |
|
$ 6.95 | |||||
| 25 | 4318047 | Valve, Water (Replaces: 60184-4) |
|
Immediately | $ 66.68 | ||||
| 26 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 27 | WP250830 | Screw (Replaces: 401017-1) |
|
$ 7.16 | |||||
| 28 | 60219-1 | Inlet Tubing Assembly |
|
- | |||||
| 29 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 30 | 24685-1 | Nut, Inlet Tubing |
|
- | |||||
| 31 | 60067-2 | Cover |
|
- | |||||
| 32 | 60067-3 | Cover |
|
- | |||||
| 33 | 65759-3 | Air, Duct |
|
- | |||||
| 33 | 400018-103 | Screw |
|
- | |||||
| 34 | 60615-1 | Ice Director |
|
- | |||||
| 35 | 63491-1 | Ice Deflector |
|
- |
