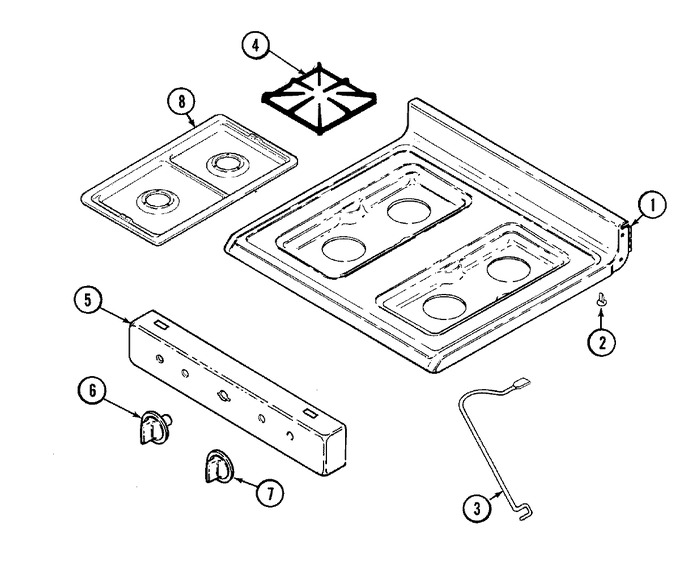

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002410 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 3 | 74004084 | Prop Rod | 10 |
|
- | ||||
| 4 | 74001061 | Grate (gry) | 10 |
|
- | ||||
| 5 | 74002442 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 6 | 74002558 | Knob, Thermostat (wht) | 10 |
|
- | ||||
| 7 | 74002497 | Knob, Burner Valve (wht) | 10 |
|
$ 15.13 | ||||
| 8 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- |
