SELECT A DIAGRAM
01 - Cover
03 - Door

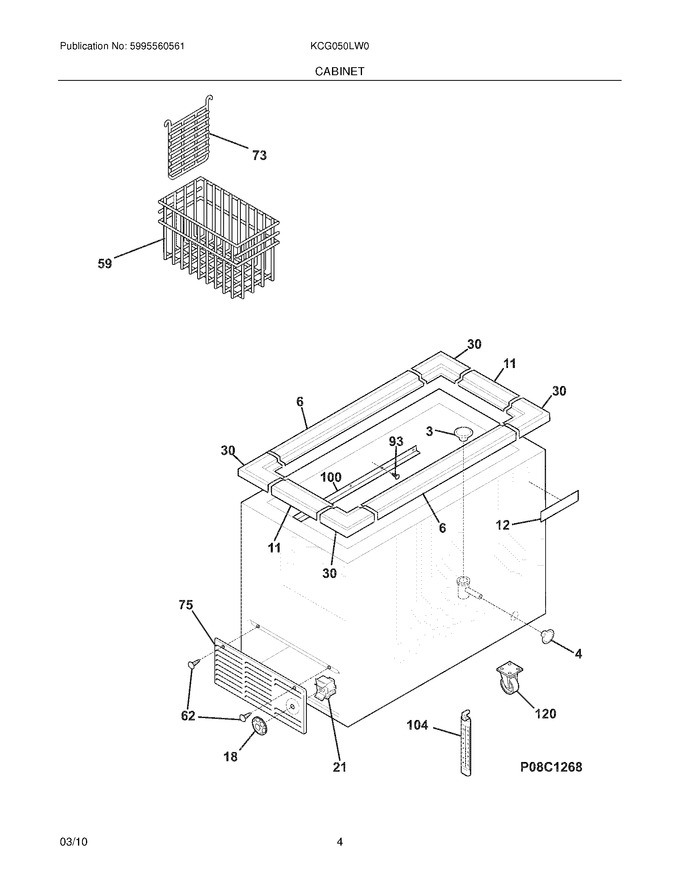

05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 4 | 297013600 | Plug-drain,exterior |
|
$ 9.98 | |||||
| 6 | 216855700 | Breaker,hinge Side |
|
$ 32.24 | |||||
| 11 | 216855706 | Breaker-ends,white |
|
- | |||||
| 12 | 297146600 | Nameplate,commercial |
|
- | |||||
| 18 | 216707201 | Knob,temp Control |
|
$ 37.54 | |||||
| 30 | 216105500 | Breaker-corners,white |
|
$ 46.83 | |||||
| 59 | 297118401 | Basket |
|
$ 94.36 | |||||
| 62 | 5304463819 | Screw,ab ,8-18x3/8 |
|
$ 1.27 | |||||
| 73 | 297118001 | Divider,basket |
|
- | |||||
| 75 | 216782000 | Panel-access,white |
|
- | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 100 | 216654100 | Track-basket |
|
- | |||||
| 104 | 297070100 | Thermometer |
|
- | |||||
| 120 | 216621000 | Caster |
|
- | |||||
| F21 | 5304496559 | Control-temperature (Replaces: 216787700) |
|
Immediately | $ 44.18 | ||||
| NI | 216649700 | Caster Pack,4 Casters ,wrench ,16 Screws |
|
- | |||||
| NI | 240494001 | Plug,white (Replaces: 297095300) |
|
Immediately | $ 18.20 |
