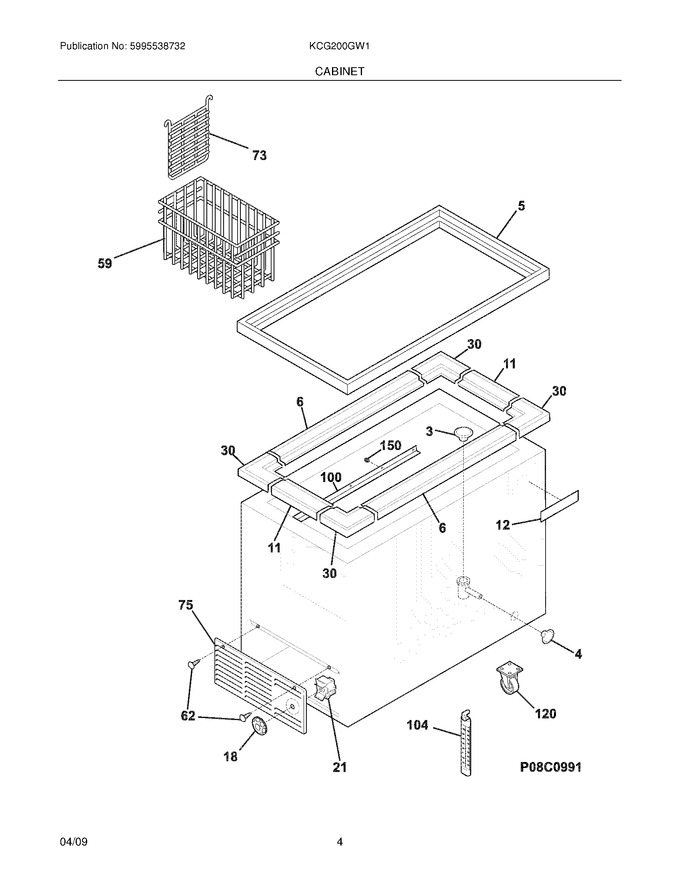

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
5	216620513		Frame,outer		Appelez-nous	-
6	216955513		Breaker,hinge Side				$ 19.48
11	216955500		Breaker,chest End ,(2)				$ 15.75
12	297146600		Nameplate,commercial		Appelez-nous	-
18	216707201		Knob,temp Control				$ 37.54
30	216110700		Breaker Corners				$ 28.45
59	297117900		Basket,chest Freezer		Appelez-nous	-
62	5304460602		Screw,cr Truss Head ,8-18ab X 0.750		Appelez-nous	-
73	216506200		Divider,basket		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
100	216995210		Track,basket		Appelez-nous	-
104	297070100		Thermometer		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
21No.	216714601		Control Temperature				$ 143.87
NI	216649700		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
