View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel (bda, Bdw)

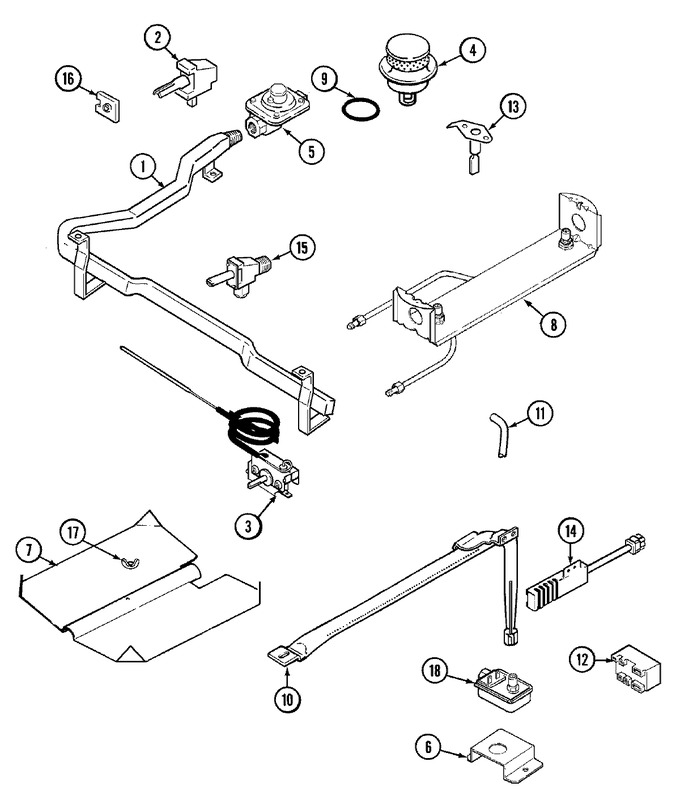

03 - Gas Controls
04 - Oven/base
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74003850 | Pipe, Manifold | 10 |
|
- | ||||
| 2 | 74003925 | Valve, Burner | 10 |
|
$ 110.58 | ||||
| 2 | 74002433 | Screw, Valve | 10 |
|
- | ||||
| 2 | 74002532 | Valve, Burner | 10 |
|
- | ||||
| 3 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 3 | 7404P096-60 | Thermostat | 10 |
|
- | ||||
| 4 | 74003966 | Burner, Sealed (taupe) | 10 |
|
$ 31.82 | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74002394 | Bracket, Oven Valve | 10 |
|
- | ||||
| 7 | 74002393 | Baffle, Oven Burner | 10 |
|
- | ||||
| 8 | 74003796 | Fitting Assy., Orifice (rt) | 10 |
|
- | ||||
| 8 | 5187D031-60 | Orifice Fitting Assembly (rt) | 10 |
|
- | ||||
| 8 | 5187D028-60 | Orifice Fitting Assembly (lt) | 10 |
|
- | ||||
| 8 | 74003797 | Fitting Assy., Orifice (lt) | 10 |
|
- | ||||
| 9 | W10124350 | Not Required Part Or See Note (gasket Not Sold Separately- Must Order Item No.4) | 10 |
|
- | ||||
| 10 | 74002434 | Burner, Oven | 10 |
|
$ 94.06 | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 11 | 74002456 | Tubing, Valve (3/8``) | 10 |
|
- | ||||
| 12 | 8215557 | Module, Spark (4+0) (Replaces: 74004283) | 10 |
|
Immediately | $ 124.99 | |||
| 13 | W10124350 | Not Required Part Or See Note (igniter Not Sold Separately Must Order Item No.4.) |
|
- | |||||
| 14 | 74007498 | Igniter, Oven (Replaces: 7432P075-60) | 10 |
|
Immediately | $ 78.40 | |||
| 14 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 15 | 74002389 | Valve, Shut Off | 10 |
|
- | ||||
| 15 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 16 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 10 |
|
$ 130.75 | ||||
| 16 | 74002533 | Switch, Igniter | 10 |
|
- | ||||
| 17 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 18 | 74002387 | Valve, Oven | 10 |
|
$ 195.43 | ||||
| 18 | 74005329 | Valve, Oven | 11 |
|
- | ||||
| 19 | 74002457 | Wires, Igniter (4-or) | 10 |
|
- | ||||
| 19 | 74004231 | Wires, Module/switches | 10 |
|
- | ||||
| 19 | 12001209 | Kit, Wire (7pc 72``ea.) | 10 |
|
- |
