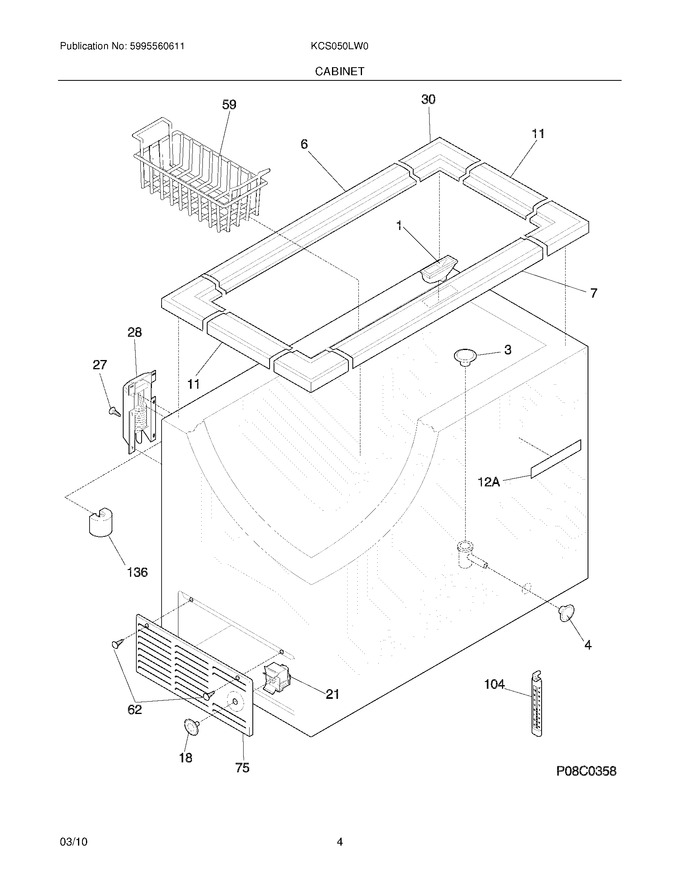

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297014100		Catch-lock,white				$ 4.21
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216855700		Breaker,hinge Side				$ 32.24
7	216855701		Breaker-lock Side,white		Appelez-nous	-
11	216855706		Breaker-ends,white		Appelez-nous	-
18	216707201		Knob,temp Control				$ 37.54
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
28	297313202		Hinge Assy,w/o Spring ,white				$ 34.91
28	297313200		Hinge Assy				$ 42.79
30	216105500		Breaker-corners,white				$ 46.83
59	297118501		Basket				$ 106.18
62	5304463819		Screw,ab ,8-18x3/8				$ 1.27
75	216782000		Panel-access,white		Appelez-nous	-
104	297074200		Thermometer		Appelez-nous	-
136	216706700		Guard-splash		Appelez-nous	-
12A	297146600		Nameplate,commercial		Appelez-nous	-
F21	216759300		Control-temperature		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216621000		Caster		Appelez-nous	-
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	297151500		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
