01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

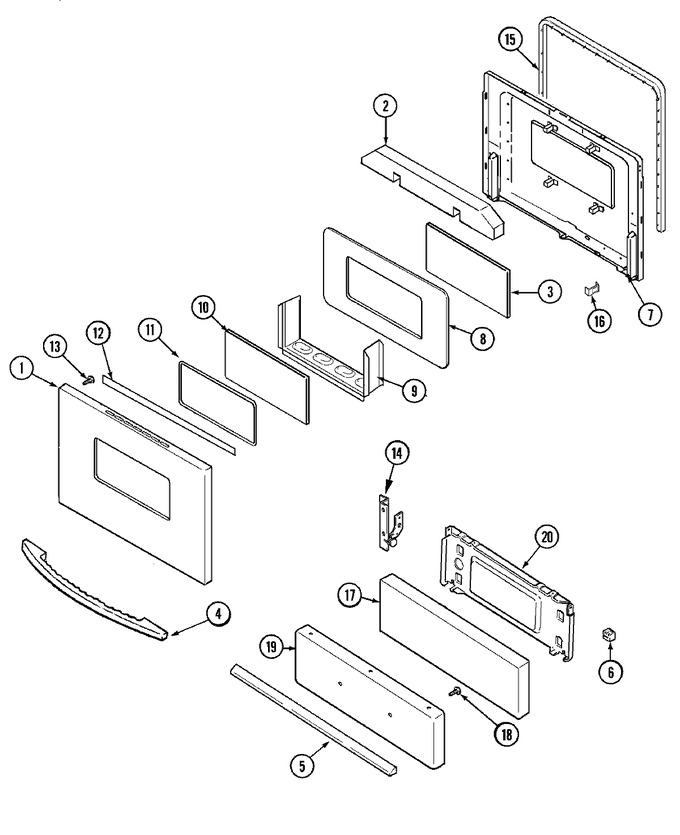

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006288 | Panel, Door (wht) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74002458 | Insulation, Door | 10 |
|
- | ||||
| 3 | 74002459 | Glass, Door (inner) | 10 |
|
- | ||||
| 4 | 74006291 | Handle, Door (wht) | 10 |
|
- | ||||
| 5 | 2411F003-71 | Handle, Door (wht) | 10 |
|
- | ||||
| 6 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 7 | 74005097 | Lining, Door | 10 |
|
- | ||||
| 8 | 7101P209-60 | Screw | 10 |
|
- | ||||
| 8 | 74002461 | Baffle, Door | 10 |
|
- | ||||
| 9 | 74002462 | Support, Outer Glass | 10 |
|
- | ||||
| 10 | 74002464 | Glass, Door (outer-wht) | 10 |
|
- | ||||
| 11 | 7201P017-60 | Gasket, Window | 10 |
|
$ 52.69 | ||||
| 12 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 13 | WP74006515 | Screw 10-32 W/ Washer (Replaces: 74006777) | 10 |
|
$ 7.29 | ||||
| 14 | 74002398 | Hinge, Drawer | 10 |
|
- | ||||
| 14 | 74007560 | Hinge, Drawer | 14 |
|
$ 61.30 | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 16 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 17 | 74001814 | Insulation, Broiler Drawer | 10 |
|
- | ||||
| 18 | 74002481 | Screw | 10 |
|
$ 5.82 | ||||
| 19 | 74001729 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 19 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 74002397 | Lining, Drawer | 10 |
|
- | ||||
| 20 | 74007553 | Lining, Drawer | 14 |
|
- |
