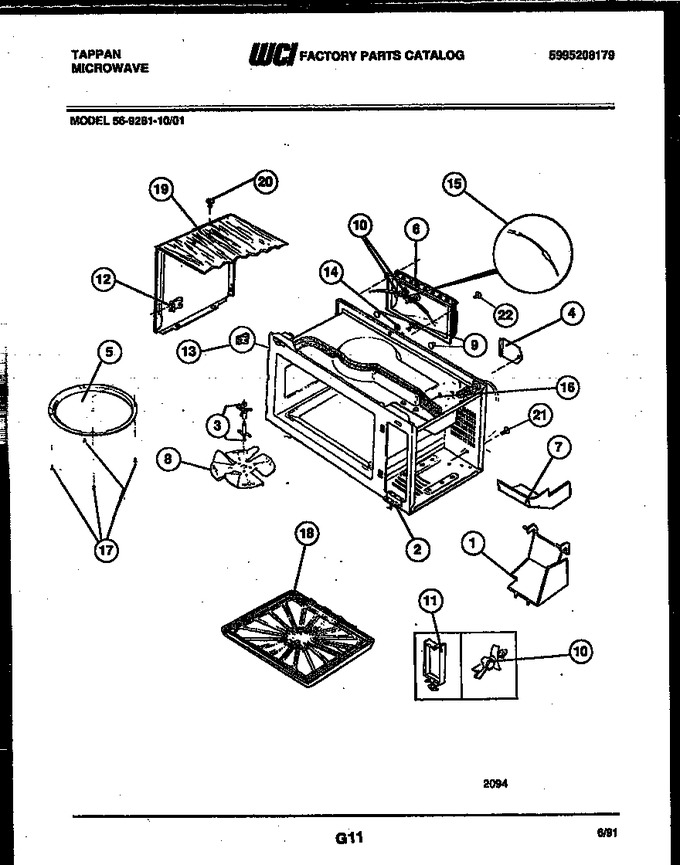

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212766		Baffle, Air		Appelez-nous	-
2	5303270384		Bracket-control Panel Support		Appelez-nous	-
3	5303922010		Collar-stirrer-(includes Support, Collar And Washer)		Appelez-nous	-
4	5303212775		Cover-light		Appelez-nous	-
5	5303200541		Cover-stirrer		Appelez-nous	-
6	5303269958		Duct-air, Exhaust		Appelez-nous	-
7	5303271017		Duct, Air, Cavity		Appelez-nous	-
8	5303202397		Fan-stirrer		Appelez-nous	-
9	5303091555		Plug Button (2)		Appelez-nous	-
10	5303212788		Support-thermal Protector (2)		Appelez-nous	-
11	5308037677		Clip, Wires, (3)		Appelez-nous	-
12	5303012322		Clip, Wrapper, (2)		Appelez-nous	-
13	3203010		Clip, Hinge, (3)   (Replaces: 5303012323)				$ 14.89
14	5303212795		Grommet, Split		Appelez-nous	-
15	5303212800		Harness-fire Protector		Appelez-nous	-
16	5303212803		Nut, Fan Duct				$ 2.10
17	5303013807		Rivet-cover Stirrer (4)		Appelez-nous	-
18	5303091188		Tray-oven		Appelez-nous	-
19	5303212812		Wrapper-wood Grain		Appelez-nous	-
20	5303015230		Plug Button (2) Woodgrain		Appelez-nous	-
21	5303271581		Rivet-back Of Fan Duct		Appelez-nous	-
22	5303271024		Screw-tamper Proof (2)		Appelez-nous	-
*51089	5303203124		Paint-white Touch Up		Appelez-nous	-
*51089	5303269631		Hang Kit		Appelez-nous	-
*51089	5303212809		Shield-oven Light, Mylar		Appelez-nous	-
19A	5303091100		Screw-wrapper (19) (non-illustrated)		Appelez-nous	-
