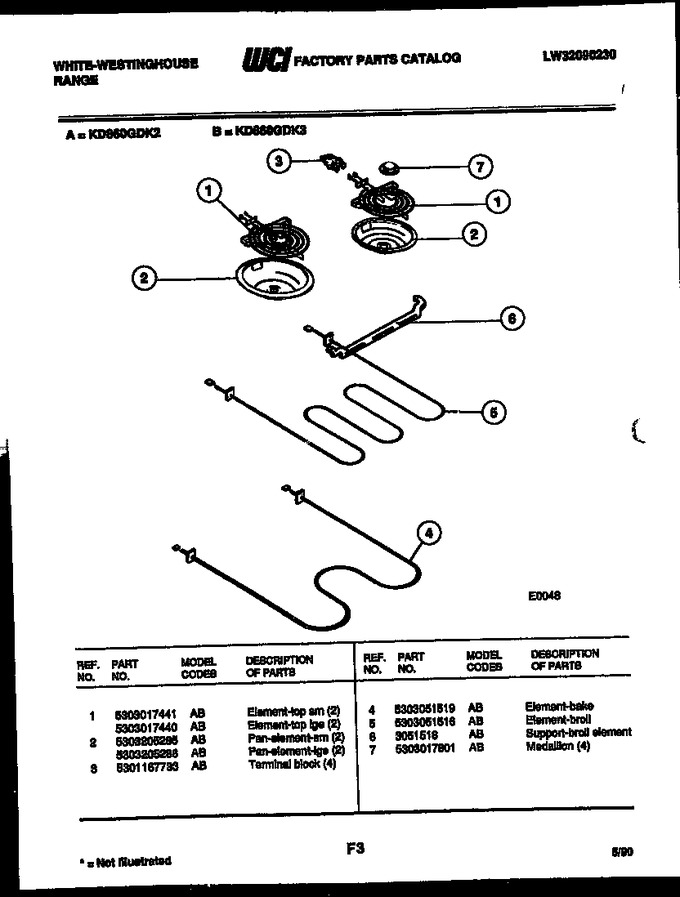

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017441 | Element-top Sm (2) |
|
- | |||||
| 2 | 5303205285 | Pan - Element Sm (2) |
|
- | |||||
| 3 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 4 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 5 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 6 | 3051518 | Support Broil Element |
|
- | |||||
| 7 | 5303017801 | Medallion (4) |
|
- | |||||
| 1A | 5303017440 | Element-top Lge (2) |
|
- | |||||
| 2A | 5303205286 | Pan - Element Lge (2) |
|
- |
