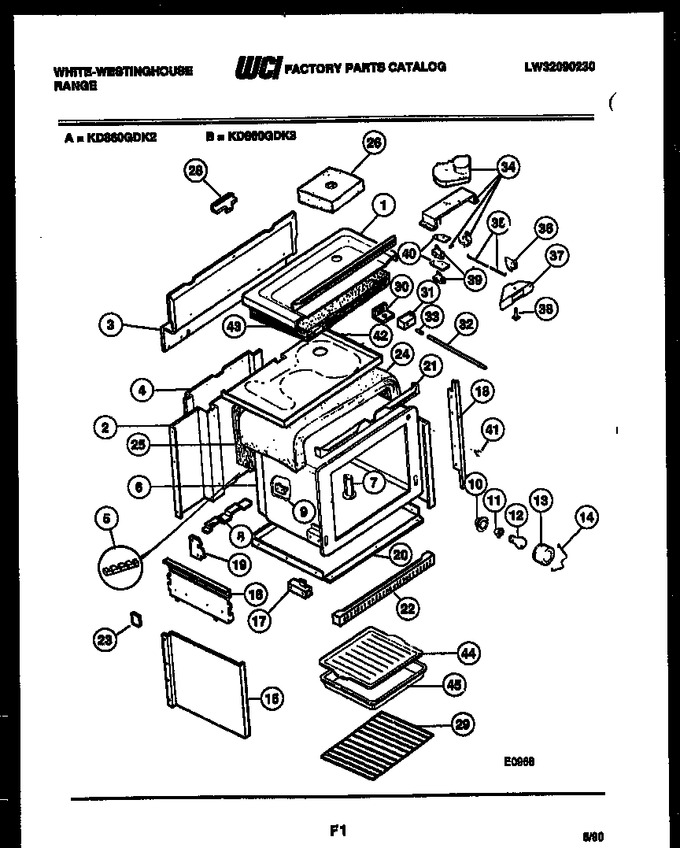

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Body Parts
06 - Broiler Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051553 | Panel, Subtop |
|
- | |||||
| 2 | 5303051530 | Back Range |
|
- | |||||
| 3 | 5308008689 | Back Range, Upper |
|
- | |||||
| 4 | 5303051856 | Cover, Wire |
|
- | |||||
| 5 | 5303161116 | Terminal Block |
|
- | |||||
| 6 | 3204607 | Liner, Oven |
|
- | |||||
| 7 | 3051773 | Tube-vent Assembly |
|
- | |||||
| 8 | K005300901 | Plate-mounting |
|
- | |||||
| 9 | 3051552 | Bracket-therm Bulb |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 5303001179 | Light Bulb |
|
- | |||||
| 13 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 14 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 15 | 08012226 | Retainer, Insulation (2) |
|
- | |||||
| 16 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 17 | 3051527 | Bracket, Support, Rh (2) |
|
- | |||||
| 18 | 08003334 | Trim, Oven Front (2) |
|
- | |||||
| 19 | 5303051532 | Closure, End Cap (2) |
|
- | |||||
| 20 | 3204634 | Retainer, Insulation, Bottom |
|
- | |||||
| 21 | 08008686 | Bracket, Cooktop |
|
- | |||||
| 22 | 5308012249 | Grille-bottom |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 5303051630 | Insulation-wrap |
|
- | |||||
| 25 | 5303051630 | Insulation-back |
|
- | |||||
| 26 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 28 | 3051800 | Bracket-hinge Supt |
|
- | |||||
| 29 | 5303131973 | Rack, Oven |
|
- | |||||
| 30 | 3051643 | Bracket, Door Switch |
|
- | |||||
| 31 | W10169313 | Switch-door Catch (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 32 | 3051645 | Push Rod-switch |
|
- | |||||
| 33 | 08007444 | End-push Rod |
|
- | |||||
| 34 | 5308015743 | Latch-motor Assy |
|
$ 211.92 | |||||
| 35 | 3051649 | Tie Bar |
|
- | |||||
| 36 | 3051648 | Latch-door |
|
- | |||||
| 37 | 3051647 | Housing-door Latch |
|
- | |||||
| 38 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 39 | 5301167190 | Switch-door Latch Upper |
|
$ 62.40 | |||||
| 40 | 08003090 | Insulation-door Latch (2) |
|
- | |||||
| 41 | 3204817 | Plug, Button |
|
- | |||||
| 42 | 3051782 | Retainer, Insulation, Top |
|
- | |||||
| 43 | 3051788 | Insulation, Top |
|
- | |||||
| 44 | 3203164 | Grille - Broiler |
|
- | |||||
| 45 | 3200723 | Pan, Broiler |
|
- | |||||
| *15437 | 3203578 | Plate, Warning |
|
- | |||||
| 17A | 3051528 | Bracket, Support, Lh (2) |
|
- | |||||
| 29A | 08014219 | Rack, Offset Oven |
|
- | |||||
| 39A | 5303051740 | Switch-door Latch Lower |
|
- |
