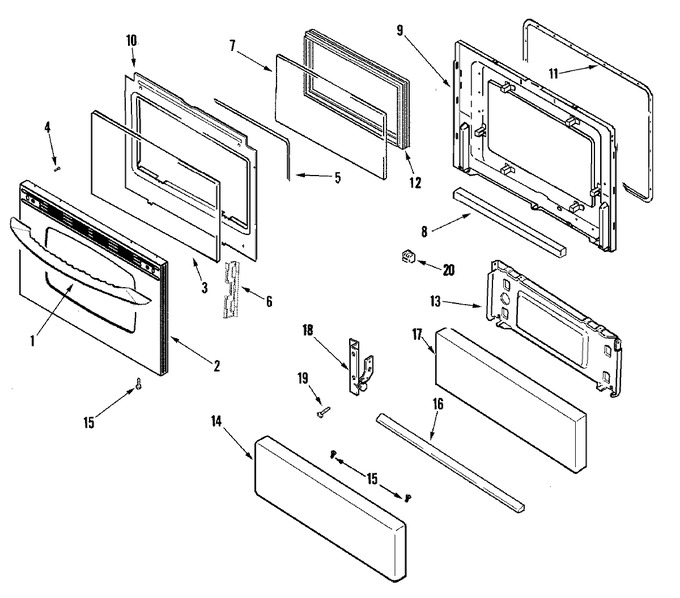

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011777		Handle, Door (blk)   (Replaces: 74009700)	10			$ 210.30
1	74011777		Handle, Door (blk)   (Replaces: 74011108)	12			$ 210.30
2	74003647		Insulation, Oven Door	10	Appelez-nous	-
2	74010232		Panel, Door (stl)	10			$ 241.66
3	74010042		Glass, Oven Door (stl)	10			$ 75.26
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
5	WP74009029		Gasket, Door Window   (Replaces: 74009029)	10		Immediately	$ 145.22
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74010041		Retainer, Door Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74003647		Insulation, Oven Door	10	Appelez-nous	-
9	74009909		Lining, Oven Door	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74009502		Baffle, Oven Door	10	Appelez-nous	-
11	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
12	74003644		Frame, Glass	10	Appelez-nous	-
13	74007553		Lining, Drawer	10	Appelez-nous	-
14	74009907		Panel, Broiler Drawer (stl)	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	WP2411F013-70		Handle, Door (blk)   (Replaces: 74007087)	10			$ 186.01
17	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
18	74007560		Hinge, Drawer	10			$ 61.30
19	WPW10068250		Screw   (Replaces: 74009897)	10			$ 3.66
20	74001663		Glide	10	Appelez-nous	-
