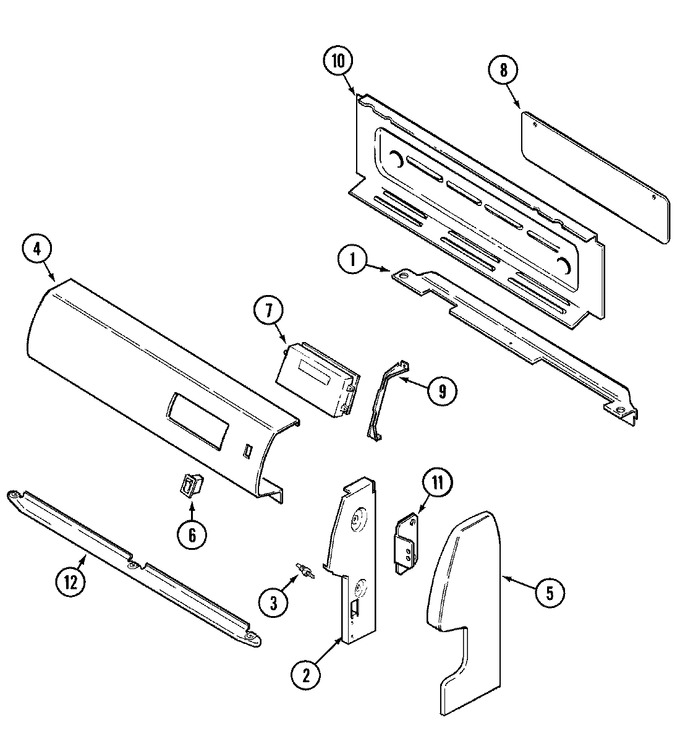

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003182 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 2 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 2 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 3 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 4 | 74003855 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 5 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74002831 | End Cap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | 74002832 | End Cap, Panel (lt-wht) | 10 |
|
- | ||||
| 6 | 74008717 | Switch, Rocker (wht) (Replaces: 7403P310-60) | 10 |
|
$ 72.68 | ||||
| 7 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 7 | 74003983 | Clock (wht) | 10 |
|
- | ||||
| 8 | 74002448 | Shield, Vent | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74002640 | Bracket, Clock | 10 |
|
- | ||||
| 9 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74002450 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | 74002639 | Shield, Control | 10 |
|
- | ||||
| 12 | 74003828 | Extension, Vent Deflector | 10 |
|
- | ||||
| 13 | 74002641 | Harness, Control Panel | 10 |
|
- | ||||
| 14 | 74003727 | Manual, Use & Care | 10 |
|
- | ||||
| 14 | 16008701 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 15 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
