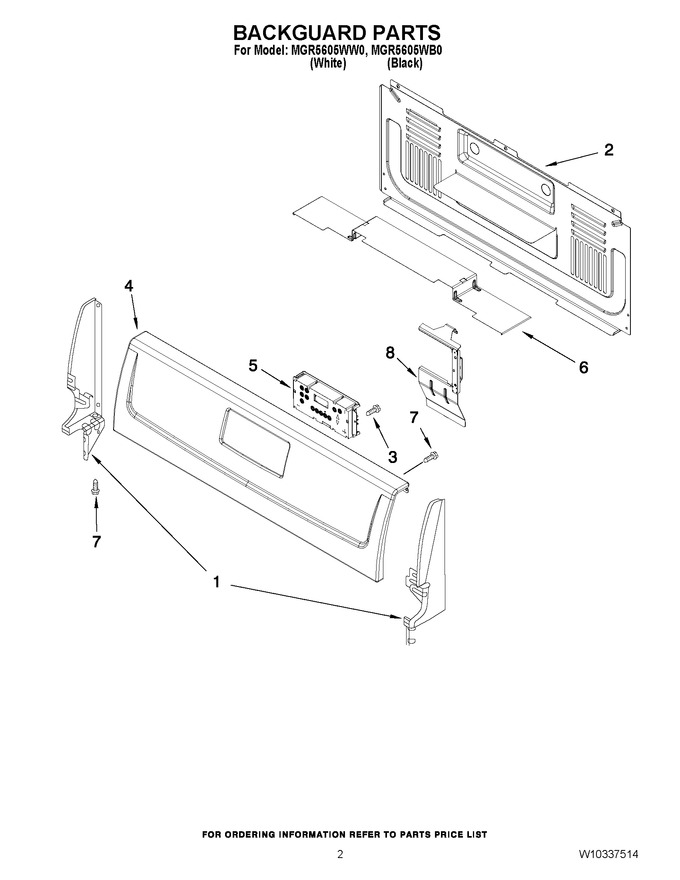

02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98004632 | Endcap (black Left) |
|
$ 76.20 | |||||
| 1 | 98004633 | Endcap (black Right) |
|
$ 77.53 | |||||
| 1 | 98005336 | Endcap (white Left) |
|
$ 79.14 | |||||
| 1 | 98005337 | Endcap (white Right) |
|
$ 79.22 | |||||
| 2 | 98006083 | Rear, Backguard |
|
- | |||||
| 3 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 4 | W10299265 | Panel, Control (black) |
|
- | |||||
| 4 | W10299267 | Panel, Control (white) |
|
- | |||||
| 5 | W10310973 | Control, Elec (black) |
|
- | |||||
| 5 | WPW10556708 | Control, Elec (white) (Replaces: W10310974) |
|
$ 226.01 | |||||
| 6 | W10120794 | Deflctor, Rear Cvr |
|
- | |||||
| 7 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 6.47 | |||||
| 8 | 98018144 | Bracket, Timer (left) |
|
- | |||||
| 8 | 98018143 | Bracket, Timer (right) |
|
- |
