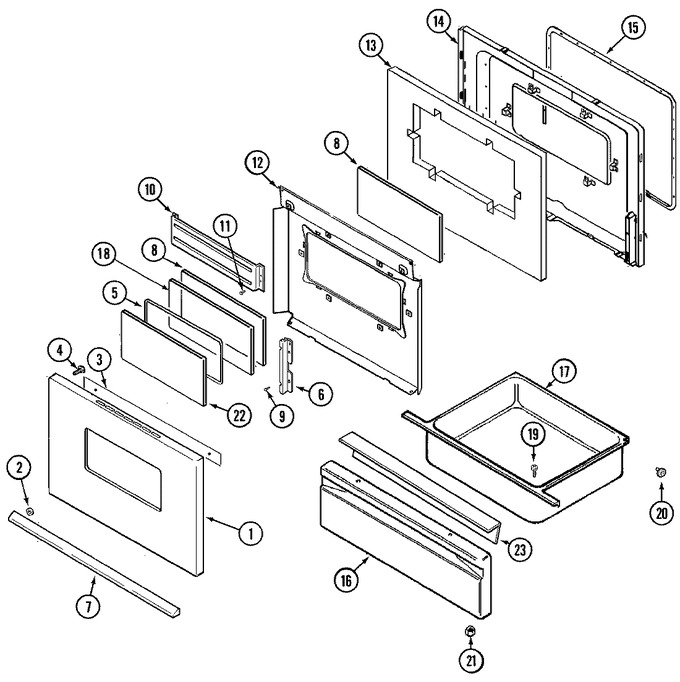

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (adq)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74005378 | Panel, Door (bsq) | 10 |
|
- | ||||
| 1 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 1 | 74006039 | Panel, Door (bsq) | 12 |
|
- | ||||
| 2 | WP74005058 | Spacer, Handle (bsq) (Replaces: 74005058) | 10 |
|
$ 7.05 | ||||
| 3 | 74003146 | Insulation, Foil Back | 10 |
|
- | ||||
| 4 | WP3387230 | Screw (Replaces: 74002483) | 10 |
|
Immediately | $ 7.69 | |||
| 4 | WP74006515 | Screw (Replaces: 74006040) | 12 |
|
$ 7.29 | ||||
| 5 | 790058 | Gasket, Window | 10 |
|
- | ||||
| 6 | 74003048 | Retainer, Glass | 10 |
|
- | ||||
| 7 | 74004974 | Handle, Door (bsq) | 12 |
|
- | ||||
| 7 | 74005583 | Handle, Door (bsq) | 10 |
|
- | ||||
| 8 | 74003320 | Glass, Inner | 10 |
|
$ 86.35 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74005458 | Baffle, Door (secondary) | 10 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 12 | 74001843 | Baffle, Door | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74001842 | Insulation, Door | 10 |
|
- | ||||
| 14 | 74004972 | Lining, Oven Door | 10 |
|
- | ||||
| 15 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 10 |
|
Immediately | $ 77.61 | |||
| 16 | 74004966 | Panel, Drawer (bsq) | 10 |
|
- | ||||
| 17 | 71003042 | Drawer, Storage | 10 |
|
- | ||||
| 18 | 74002002 | Glass, Inner | 10 |
|
$ 62.17 | ||||
| 19 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 | ||||
| 20 | 74005231 | Shaft, Storage Drawer Roller | 10 |
|
$ 9.23 | ||||
| 20 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 20 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 21 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 22 | 74005377 | Glass, Door (bsq) | 10 |
|
- | ||||
| 23 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 23 | 2404F030-51 | Lining, Drawer Panel | 10 |
|
- |
