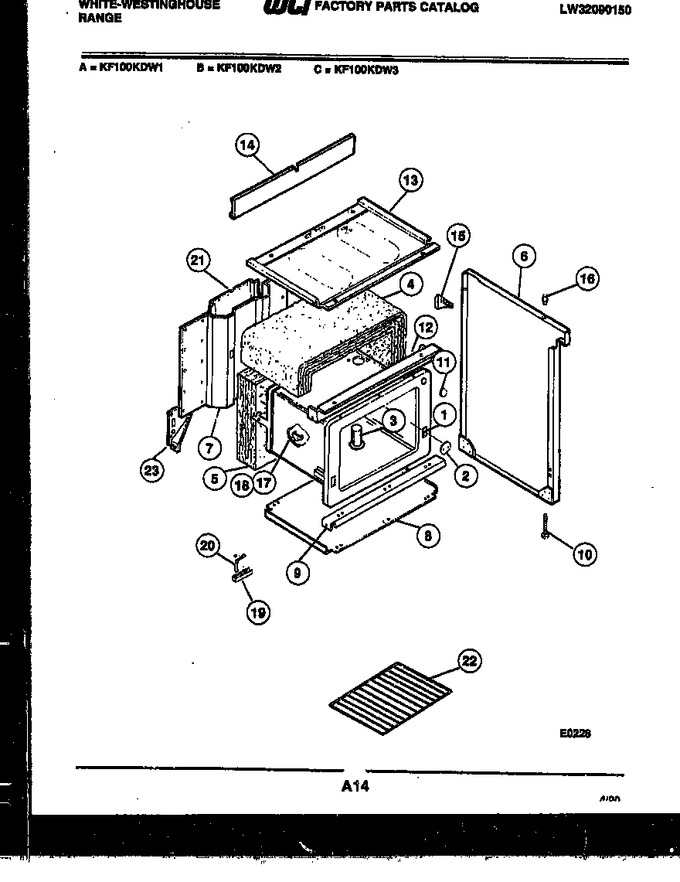

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204607		Oven		Appelez-nous	-
2	3017576		Cover-light		Appelez-nous	-
3	08012541		Vent-tube		Appelez-nous	-
4	3051521		Insulation Wrap		Appelez-nous	-
5	5303051630		Insulation-back		Appelez-nous	-
6	5305024610		Panel-end Lh (wheat)		Appelez-nous	-
7	3017535		Back		Appelez-nous	-
8	3206275		Panel, Bottom		Appelez-nous	-
9	3200950		Channel-oven Support Bottom		Appelez-nous	-
10	3205294		Screw-level (4)		Appelez-nous	-
11	3204817		Button-plug		Appelez-nous	-
12	3200927		Channel-oven Support Top		Appelez-nous	-
13	K005025704		Panel, Subtop		Appelez-nous	-
14	3205755		Shield-wire		Appelez-nous	-
15	3051657		Gusset-backgrd (2)		Appelez-nous	-
16	5308003107		Bumper (4)		Appelez-nous	-
17	08014653		Bracket-thermostat Bulb		Appelez-nous	-
18	5300009126		Clip		Appelez-nous	-
19	5303051098		Terminal Block		Appelez-nous	-
20	K1145190		Plate-grounding		Appelez-nous	-
21	5303051856		Cover, Wire		Appelez-nous	-
22	5303131973		Rack, Oven		Appelez-nous	-
23	3017481		Gusset-rear, Rh		Appelez-nous	-
23A	3017482		Gusset-rear, Lh		Appelez-nous	-
6A	5305024609		Panel-end Rh (wheat)		Appelez-nous	-
