SELECT A DIAGRAM

01 - Body (ada, Adh, Adl, Adq, Adw)


02 - Control Panel (ada, Adh, Adl, Adq, Adw)

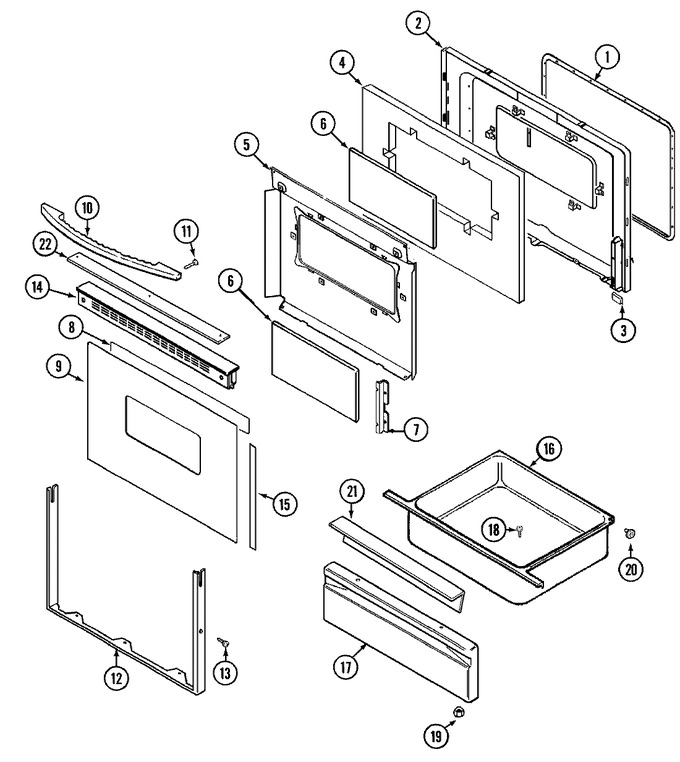

03 - Door/drawer (ada, Adh, Adl, Adq, Adw)


04 - Gas Controls (ada, Adh, Adl, Adq, Adw)


05 - Oven/base (ada, Adh, Adl, Adq, Adw)


06 - Top Assembly (ada, Adh, Adl, Adq, Adw)


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	74004972		Lining, Oven Door	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	74001842		Insulation, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74001843		Baffle, Door	10	Appelez-nous	-
6	74003320		Glass, Inner	10			$ 86.35
7	74001844		Retainer, Glass	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	8270P078-60		Tape, Foil (29 1/2``)	10	Appelez-nous	-
9	74004973		Glass, Outer Door (bsq)	10	Appelez-nous	-
10	74004974		Handle, Door (bsq)	10	Appelez-nous	-
11	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
12	74004975		Frame, Door (bsq)	10	Appelez-nous	-
13	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74004977		Trim, Top (bsq)	10	Appelez-nous	-
15	74003660		Tape, Foil (8.75`` X 1``)	10	Appelez-nous	-
16	71003042		Drawer, Storage	10	Appelez-nous	-
17	74004966		Panel, Drawer (bsq)	10	Appelez-nous	-
18	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
19	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
20	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
20	74004079		Shaft, Roller	10	Appelez-nous	-
21	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
22	74004978		Insert, Door Trim (bsq)	10	Appelez-nous	-
22	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26

    View Diagram in Separate Window       Print Part List
