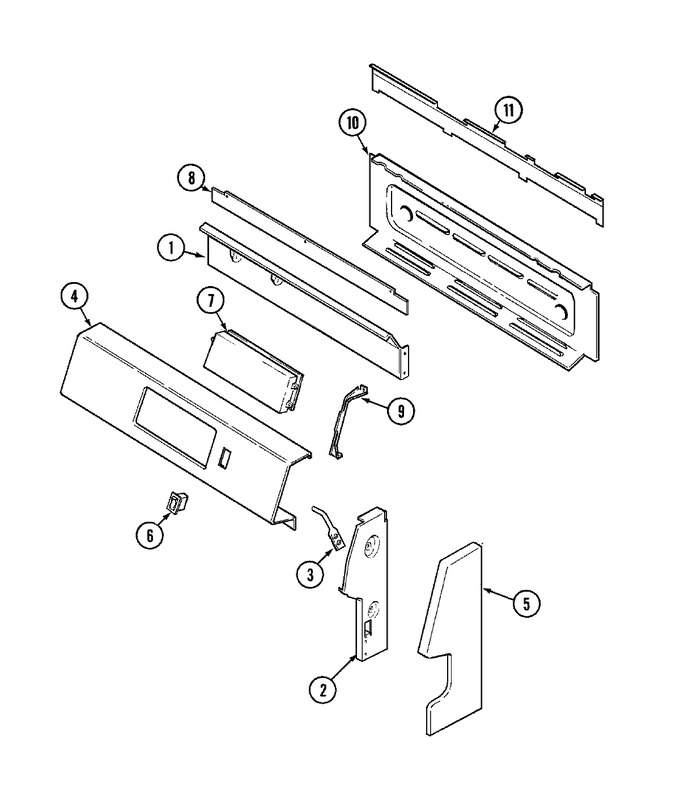

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 2 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 2 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 3 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 4 | 74003885 | Panel, Control (alm) | 10 |
|
- | ||||
| 5 | 74003609 | End Cap, Control Pnl (rt-alm) | 10 |
|
- | ||||
| 5 | 74003610 | End Cap, Control Pnl (lt-alm) | 10 |
|
- | ||||
| 5 | 74002528 | Screw (1 3/16``-alm) | 10 |
|
- | ||||
| 5 | WP74009541 | Screw (1/2``-alm) (Replaces: 7101P374-60) | 10 |
|
$ 6.26 | ||||
| 6 | 74008765 | Switch, Rocker (alm) (Replaces: 74003453) | 10 |
|
$ 79.50 | ||||
| 7 | 74003800 | Clock W/overlay (alm) | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 8 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 9 | 74002502 | Screw (alm) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74003493 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | 74003614 | Extension, Control Panel | 10 |
|
- | ||||
| 12 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 12 | 74003992 | Harness, Sensor/lock | 10 |
|
- | ||||
| 13 | 74004009 | Manual, Use & Care | 10 |
|
- | ||||
| 14 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
