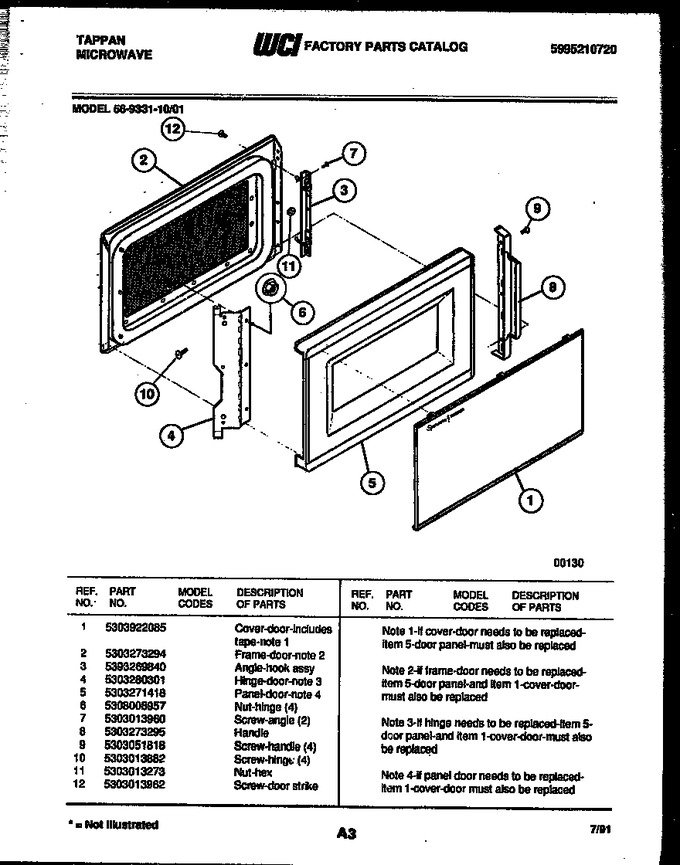

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303922085 | Cover-door-includes Tape (if Cover-door Needs To Be Repl |
|
- | |||||
| 2 | 5303273294 | Frame-door (if Frame-door Needs To Be Replaced-item 5-do |
|
- | |||||
| 3 | 5393269840 | Angle-hook Assy |
|
- | |||||
| 4 | 5303280301 | Hinge-door (if Hinge Needs To Be Replaced-item 5-door Pa |
|
- | |||||
| 5 | 5303271418 | Panel-door (if Panel Door Needs To Be Replaced Item 1-co |
|
- | |||||
| 6 | 5308008957 | Nut-hinge (4) |
|
- | |||||
| 7 | 5303013960 | Screw-angle (2) |
|
- | |||||
| 8 | 5303273295 | Handle |
|
- | |||||
| 9 | 5303051818 | Screw-handle (4) |
|
- | |||||
| 10 | 5303013882 | Screw-hinge (4) |
|
- | |||||
| 11 | 5303013273 | Nut-hex |
|
- | |||||
| 12 | 5303013962 | Screw-door Strike |
|
- |
