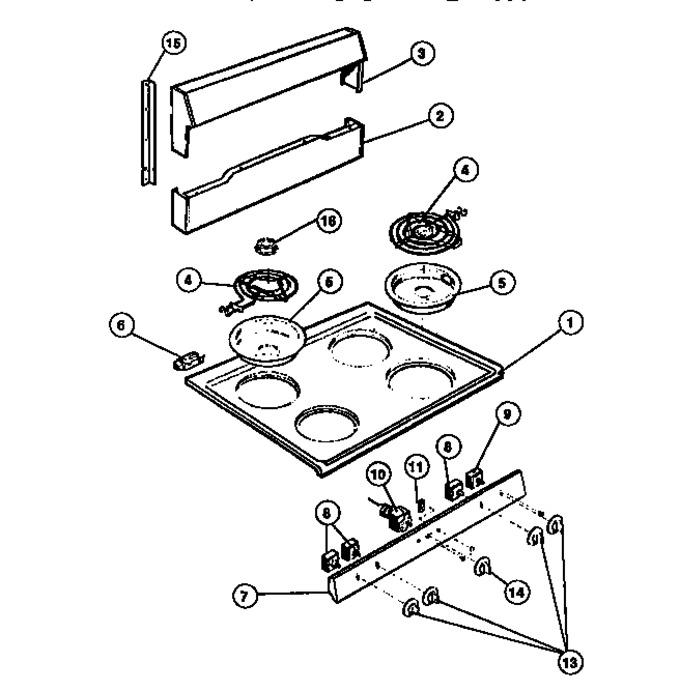

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051015		Top-white		Appelez-nous	-
2	3016212		Panel, Backguard		Appelez-nous	-
3	3051007		Panel-bottom		Appelez-nous	-
4	3015716		Element S/u Small (3)		Appelez-nous	-
5	3205285		Pan S/u Small (3)		Appelez-nous	-
6	3016957		Block Terminal (4)		Appelez-nous	-
7	3016155		Panel Switch -white		Appelez-nous	-
8	08011487		Switch S/u Small (3)		Appelez-nous	-
9	3051035		Switch S/u Large		Appelez-nous	-
10	3015184		Thermostat		Appelez-nous	-
11	3051034		Light-indicator (2)		Appelez-nous	-
13	3051028		Knob S/u (4)		Appelez-nous	-
14	3051030		Knob-thermostat		Appelez-nous	-
15	08013296		Brace (2)		Appelez-nous	-
16	3051358		Medallion (4)		Appelez-nous	-
4A	3015715		Element S/u Large		Appelez-nous	-
5A	3205286		Pan S/u Large		Appelez-nous	-
