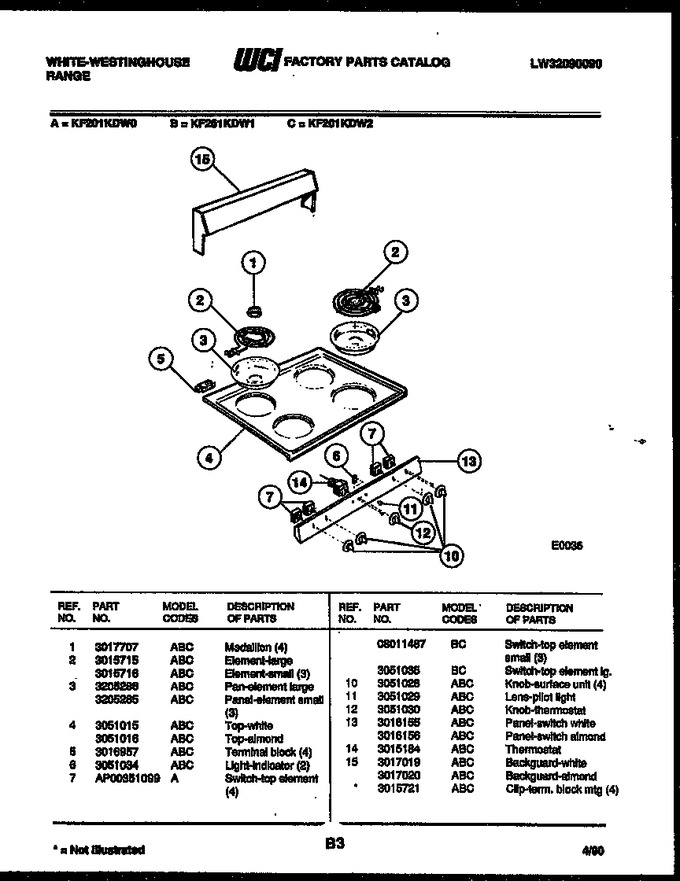

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017707 | Medallion (4) |
|
- | |||||
| 2 | 3015715 | Element-large |
|
- | |||||
| 3 | 3205286 | Pan-element Large |
|
- | |||||
| 4 | 3051016 | Top-almond |
|
- | |||||
| 4 | 3051015 | Top-white |
|
- | |||||
| 5 | 3016957 | Terminal Block ( 4 ) |
|
- | |||||
| 6 | 3051034 | Light-indicator (2) |
|
- | |||||
| 7 | AP00351099 | Switch-top Element (4) |
|
- | |||||
| 10 | 3051028 | Knob Surface Unit (4) |
|
- | |||||
| 11 | 3051029 | Lens-pilot Light |
|
- | |||||
| 12 | 3051030 | Knob-thermostat |
|
- | |||||
| 13 | 3016156 | Panel Switch-almond |
|
- | |||||
| 14 | 3015184 | Thermostat |
|
- | |||||
| 15 | 3017020 | Backguard-almond |
|
- | |||||
| *10130 | 3015721 | Clip-term Block Mtg (4) |
|
- | |||||
| 2A | 3015716 | Element-small ( 3 ) |
|
- | |||||
| 7A | 08011487 | Switch-top Element Small (3) |
|
- | |||||
| 7B | 3051035 | Switch-top Element Lg. |
|
- |
