SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly

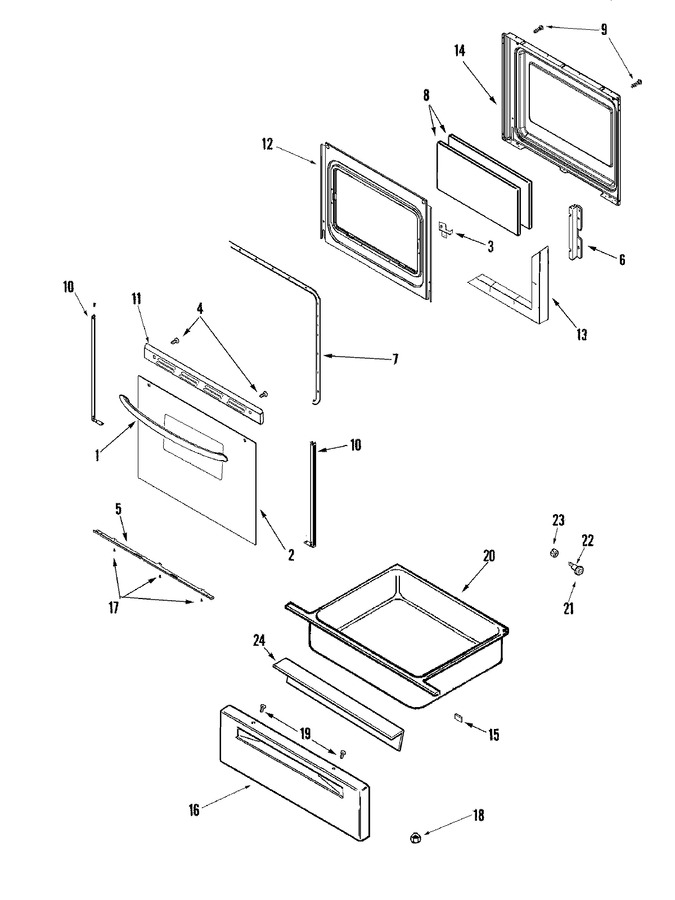

03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009185 | Handle, Door (bsq) | 10 |
|
- | ||||
| 1 | 74011107 | Handle, Door (bsq) | 12 |
|
- | ||||
| 2 | 74003146 | Insulation, Foil Back | 10 |
|
- | ||||
| 2 | 74009728 | Glass, Door (outer-bsq) | 10 |
|
- | ||||
| 3 | 3801F832-45 | Bracket, Door Handle (lt) (Replaces: 74009699) | 10 |
|
$ 19.12 | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3801F831-45 | Bracket, Door Handle (rt) (Replaces: 74009698) | 10 |
|
$ 19.17 | ||||
| 4 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 4 | WP74006515 | Screw W/washer (handle Mtg) (Replaces: 74006635) | 10 |
|
$ 7.29 | ||||
| 5 | 74009688 | Support, Glass (bsq) | 10 |
|
- | ||||
| 6 | 74001844 | Retainer, Glass | 10 |
|
- | ||||
| 7 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 10 |
|
Immediately | $ 77.61 | |||
| 8 | 74003320 | Glass, Inner | 10 |
|
$ 86.35 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74009697 | Trim, Door (bsq-lt) | 10 |
|
- | ||||
| 10 | WP74009014 | Tape, Dbl Sided (wht) (Replaces: 74009014) | 10 |
|
$ 6.91 | ||||
| 10 | 74009696 | Trim, Door (bsq-rt) | 10 |
|
- | ||||
| 11 | 74009691 | Trim, Door Top (bsq) | 10 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 12 | 74009528 | Baffle, Oven Door | 10 |
|
- | ||||
| 13 | 74001842 | Insulation, Door | 10 |
|
- | ||||
| 14 | 74004972 | Lining, Oven Door | 10 |
|
- | ||||
| 15 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 | ||||
| 16 | 74004966 | Panel, Drawer (bsq) | 10 |
|
- | ||||
| 17 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 18 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 19 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 | ||||
| 20 | 74008337 | Drawer, Storage | 10 |
|
$ 171.37 | ||||
| 21 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 22 | 74005231 | Shaft, Storage Drawer Roller | 10 |
|
$ 9.23 | ||||
| 23 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 24 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 2404F030-51 | Lining, Drawer Panel | 10 |
|
- |
