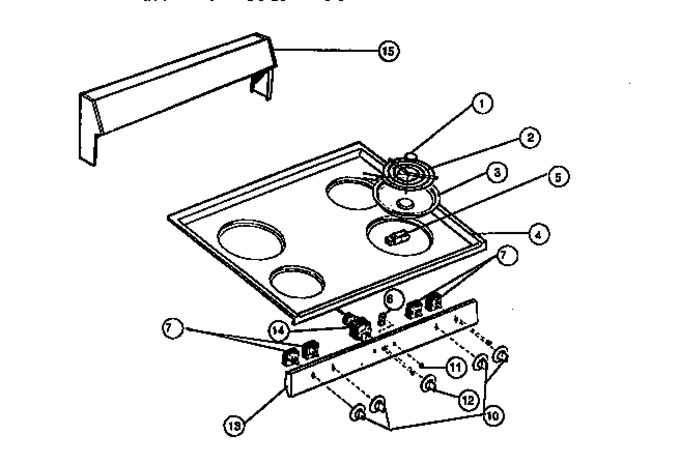

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051017 | Medallion ( 4 ) |
|
- | |||||
| 2 | 3015716 | Element-small ( 3 ) |
|
- | |||||
| 2 | 3015715 | Element-large |
|
- | |||||
| 3 | 3205286 | Pan-element Large |
|
- | |||||
| 5 | 3016957 | Terminal Block ( 4 ) |
|
- | |||||
| 6 | 3051034 | Light-indicator (2) |
|
- | |||||
| 10 | 3051028 | Knob Surface Unit (4) |
|
- | |||||
| 11 | 3051029 | Len-pilot Light |
|
- | |||||
| 12 | 3051030 | Knob-thermostat |
|
- | |||||
| 14 | 3015184 | Thermostat |
|
- | |||||
| 13A | 3017017 | Panel-switch Almond |
|
- | |||||
| 15A | 3017020 | Backguard-almond |
|
- | |||||
| 3A | 3205285 | Pan-element Small ( 3 ) |
|
- | |||||
| 4A | 3051016 | Top-almond |
|
- | |||||
| 7A | 3051035 | Switch-top Elem. Lg. |
|
- | |||||
| 7B | 08011487 | Switch-top Elem. Sm ( 3) |
|
- |
