SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly

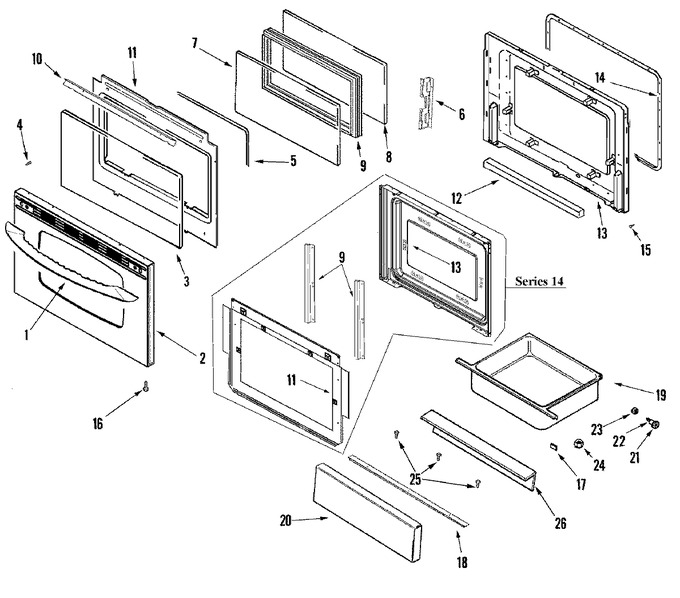

03 - Door/drawer (stl)


04 - Gas Controls


05 - Oven/base


06 - Supplemental Information


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011777		Handle, Door (blk)   (Replaces: 74011108)	10			$ 210.30
1	74011777		Handle, Door (blk)	15			$ 210.30
2	74010232		Panel, Door (stl)	10			$ 241.66
2	74010233		Insulation, Foil	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
3	74010042		Glass, Oven Door (stl)	10			$ 75.26
4	74011772		Screw, Handle Mounting	15			$ 5.18
4	WP74006515		Screw 10-32 W/ Washer   (Replaces: 74006777)	10			$ 7.29
5	WP74009029		Gasket, Door Window   (Replaces: 74009029)	10		Immediately	$ 145.22
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74010041		Retainer, Door Glass	10	Appelez-nous	-
7	74010231		Glass, Door (inner/coated)	10	Appelez-nous	-
8	74003645		Glass, Inner	10		Immediately	$ 162.53
9	74003644		Frame, Glass	10	Appelez-nous	-
9	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	14		Immediately	$ 12.62
9	74011458		Bracket, Inner Glass	14	Appelez-nous	-
10	74010040		Shield, Door (stl)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74009502		Baffle, Oven Door	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
11	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	14			$ 244.22
12	74003647		Insulation, Oven Door	10	Appelez-nous	-
13	74003642		Lining, Door	10	Appelez-nous	-
13	74011456		Lining, Door	14	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
14	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
18	74009841		Handle, Drawer (stl)	10	Appelez-nous	-
18	W10174639		Handle, Drawer (stl)	19	Appelez-nous	-
18	W10180296		Handle, Drawer (stl)	18			$ 99.76
19	74010267		Spacer, Rubber (blk-square)	10			$ 8.34
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	74008337		Drawer, Storage	10			$ 171.37
20	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
20	W10160943		Panel, Drawer Gas (stl)	18	Appelez-nous	-
20	74009840		Panel, Drawer Gas (stl)	10	Appelez-nous	-
21	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
22	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
23	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
24	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
25	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	10		Immediately	$ 12.62
26	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
