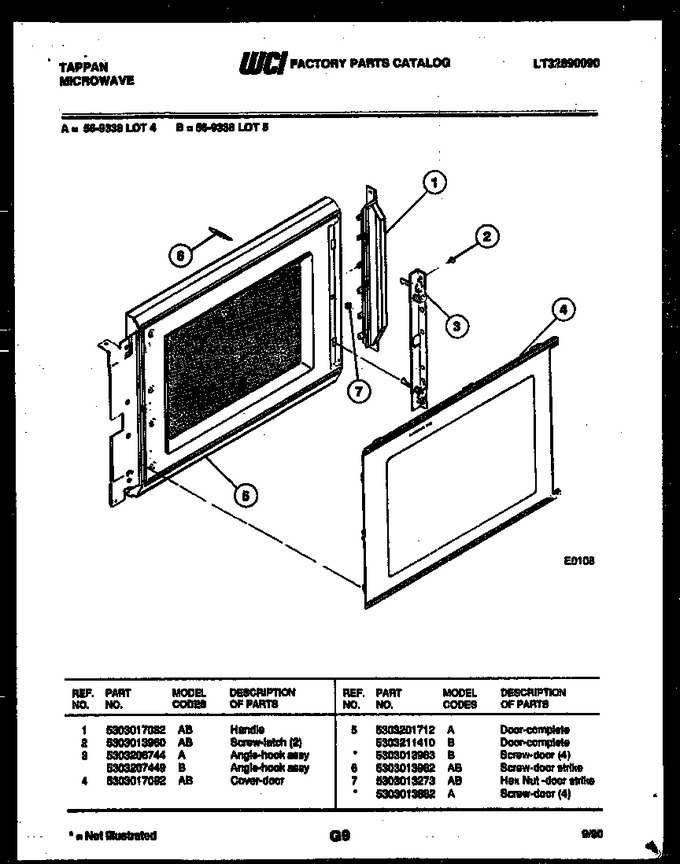

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017082 | Handle |
|
- | |||||
| 2 | 5303013960 | Screw-latch (2) |
|
- | |||||
| 3 | 5303206744 | Angle-hook Assy |
|
- | |||||
| 4 | 5303017092 | Cover-door |
|
- | |||||
| 5 | 5303201712 | Door Complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut -door Strike |
|
- | |||||
| *33856 | 5303013882 | Screw-door (4) |
|
- |
