01 - Cabinet
02 - Cavity
03 - Control Panel/top Assembly
04 - Door/drawer
05 - Gas Controls
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

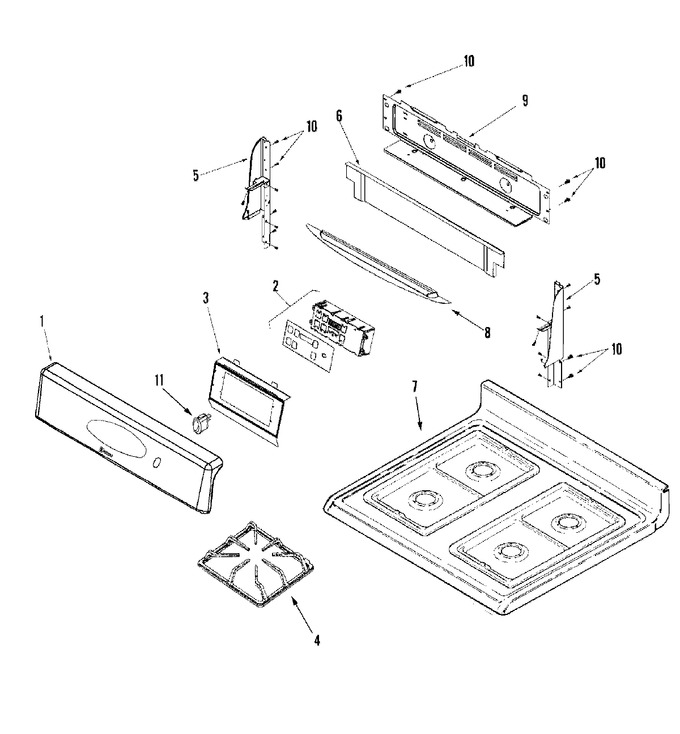

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009109 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 2 | 74009150 | Clock/overlay (wht) | 12 |
|
- | ||||
| 2 | 74008641 | Clock/overlay (wht) | 10 |
|
- | ||||
| 3 | W10124350 | Not Required Part Or See Note Not Required-brckt On Panel | 10 |
|
- | ||||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 4 | W10841140 | Sealer, Rtv Clear (Replaces: M0275597) | 10 |
|
Immediately | $ 24.92 | |||
| 4 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 4 | 74009131 | Grate, (gry) | 10 |
|
- | ||||
| 5 | 74008723 | End Cap (rt-wht) | 10 |
|
- | ||||
| 5 | 74008720 | End Cap (lt-wht) | 10 |
|
- | ||||
| 6 | 74008726 | Shield, Vent (wht) | 10 |
|
- | ||||
| 6 | 74009206 | Shield, Vent (wht) | 13 |
|
- | ||||
| 7 | 74009126 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | 74009203 | Shield, Heat Visor (wht) | 13 |
|
- | ||||
| 8 | 74008728 | Shield, Heat Visor (wht) | 10 |
|
- | ||||
| 8 | 74003640 | Screw, Shoulder | 10 |
|
$ 5.83 | ||||
| 9 | 74009093 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74009653 | Cover, Broil Access Fitting | 10 |
|
- | ||||
| 9 | 74009053 | Cover, Backguard Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | WP74010226 | Switch, Rocker (wht) (Replaces: 74008938) | 10 |
|
$ 86.45 |
