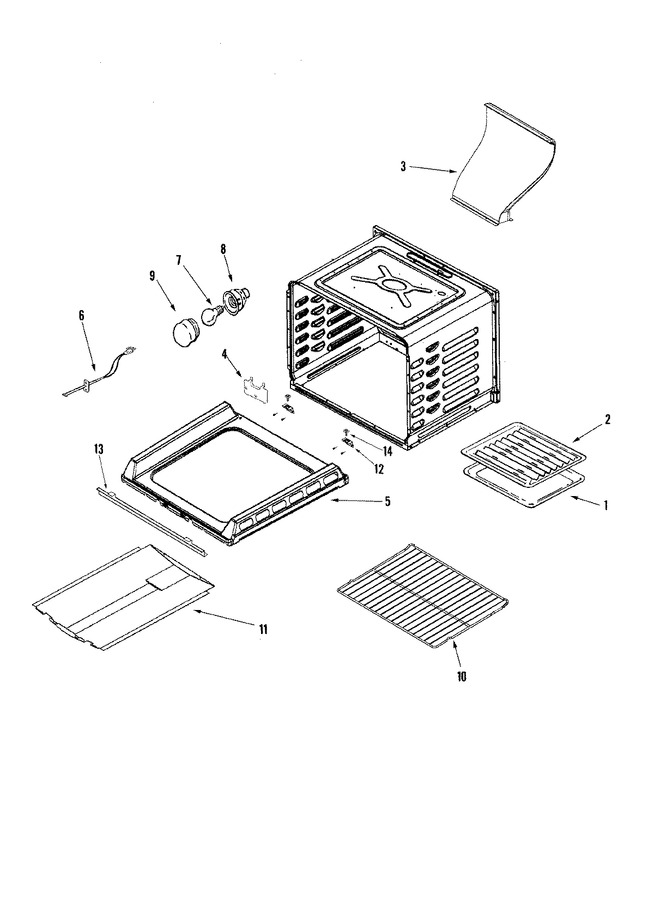

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	23	Appelez-nous	-
1	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	25	Appelez-nous	-
1	Y3401F02019		Pan, Broil	10	Appelez-nous	-
1	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	21	Appelez-nous	-
2	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	21	Appelez-nous	-
2	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	23	Appelez-nous	-
2	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	25	Appelez-nous	-
2	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
3	74008817		Vent, Oven	10	Appelez-nous	-
4	4005F421-45		Cover,igniter	10	Appelez-nous	-
5	WPW10211368		Bottom, Oven   (Replaces: 74008741)	10		Immediately	$ 287.07
6	12001655		Sensor, Oven (short)   (Replaces: 74004944)	10		Immediately	$ 41.01
7	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	10		Immediately	$ 16.80
8	WP74011278		Oven Light Assy.   (Replaces: 71002427)	10			$ 101.56
9	WP9781049		Lens, Bulb   (Replaces: 71001867)	10		Immediately	$ 71.93
10	WP74008763		Rack, Oven   (Replaces: 74008763)	10			$ 192.14
11	74008846		Baffle, Bake Burner	10	Appelez-nous	-
12	74008694		Support, Oven Bottom (rear)	10	Appelez-nous	-
13	74008695		Support, Oven Bottom (front)	10	Appelez-nous	-
14	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47

    View Diagram in Separate Window       Print Part List
