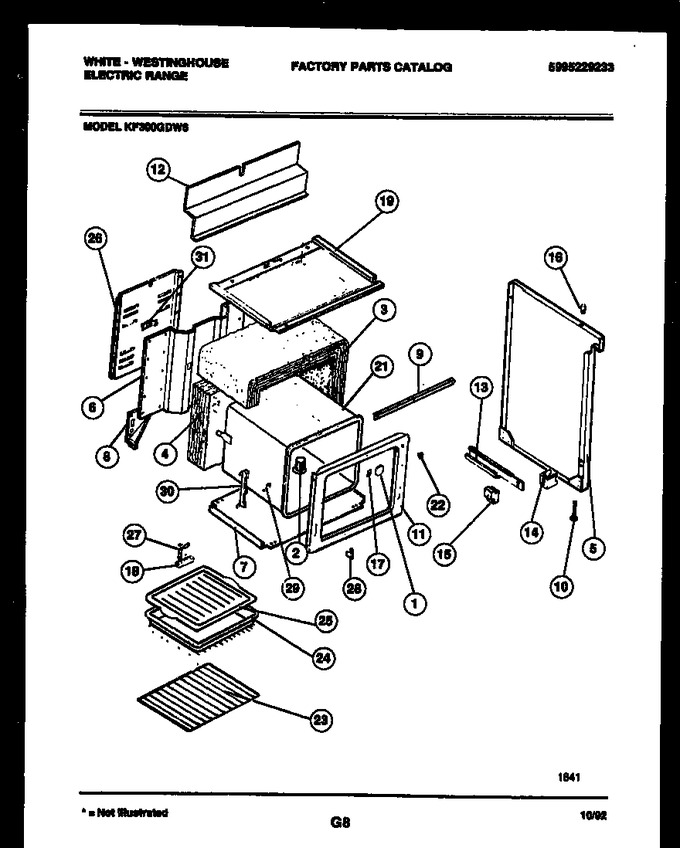

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017576		Cover - Oven Lt Hole		Appelez-nous	-
2	08012541		Tube-oven Vent		Appelez-nous	-
3	3051521		Insulation - Oven Wrap		Appelez-nous	-
4	5303274967		Insulation-oven Back		Appelez-nous	-
5	5308012527		Panel-side Rh-white		Appelez-nous	-
6	3205757		Back, Range		Appelez-nous	-
7	3206275		Panel, Bottom		Appelez-nous	-
8	3017481		Gusset-rear, Rh		Appelez-nous	-
9	5303207391		Support-subtop		Appelez-nous	-
10	5303205540		Screw-leveling (4)		Appelez-nous	-
11	316042103		Frame - Front		Appelez-nous	-
12	3206095		Shield-wire		Appelez-nous	-
13	5308015746		Rail-drawer Rh		Appelez-nous	-
14	3051653		Spacer, Drawer Rail (2)		Appelez-nous	-
15	3051654		Guide, Drawer Front (2)		Appelez-nous	-
16	5308003107		Bumper, Cooktop (4)		Appelez-nous	-
17	3202082		Cover Seam		Appelez-nous	-
18	5304409888		Block, Terminal   (Replaces: 5306563359)			Immediately	$ 26.69
19	5303292692		Panel - Subtop		Appelez-nous	-
21	5303292686		Liner-oven		Appelez-nous	-
22	3204817		Button-plug		Appelez-nous	-
23	5303281625		Rack-oven (2)		Appelez-nous	-
24	5303292688		Pan-broiler		Appelez-nous	-
25	3205234		Grill - Broiler		Appelez-nous	-
26	5303051856		Wire, Cover		Appelez-nous	-
27	5301145190		Strap, Ground		Appelez-nous	-
28	3019063		Retainer - Door (2)		Appelez-nous	-
29	3201632		Spacer, Oven (2)		Appelez-nous	-
30	3201631		Hinge - Assy (2)				$ 58.22
31	3016281		Spring, Oven (2)		Appelez-nous	-
*70177	3934063		Anti-tip Kit		Appelez-nous	-
*70177	19100210021		Wiring Diagram (not For Sale)		Appelez-nous	-
13A	3051652		Rail, Drawer Lh		Appelez-nous	-
30A	5303284616		Clip - Capillary (2) (non-illustrated)				$ 9.86
5A	5308012528		Panel-side Lh-white		Appelez-nous	-
8A	3017482		Gusset-rear, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
