View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

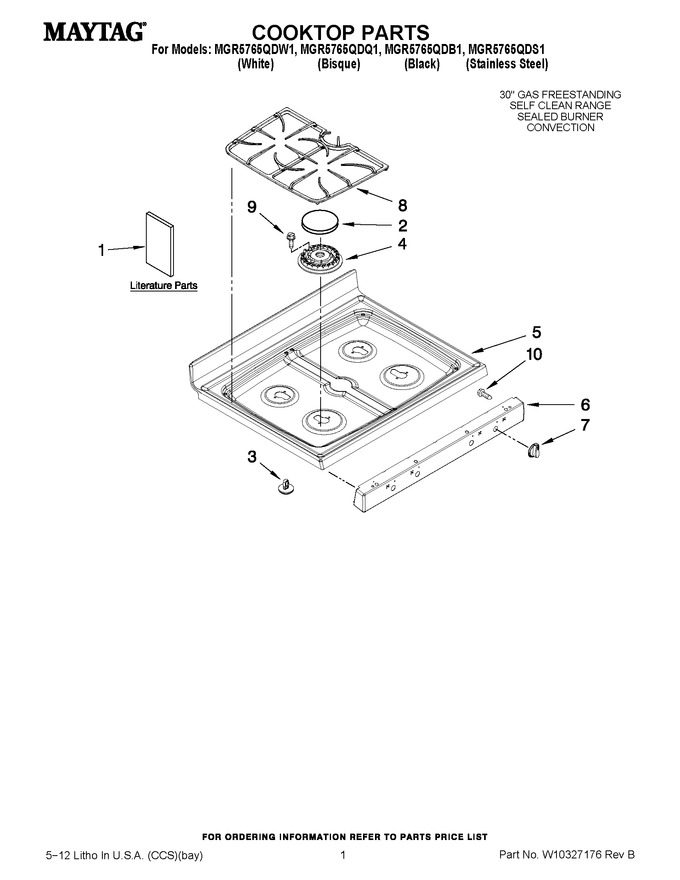

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 8119P327-60 | Wiring Diagram |
|
- | |||||
| 1 | 8113P734-60 | Owners Manual |
|
- | |||||
| 1 | 8101P571-60 | Installation Instructions |
|
- | |||||
| 2 | WP74007417 | Cap, Burner Right Front (taupe) (Replaces: 7504P144-60) |
|
$ 121.73 | |||||
| 2 | WP74007419 | Cap, Burner Left Rear (taupe) (Replaces: 7504P142-60) |
|
$ 66.47 | |||||
| 2 | 7504P138-60 | Cap, Burner Right Front (black) |
|
- | |||||
| 2 | WP74007420 | Cap, Burner Right Front (gray) (Replaces: 7504P141-60) |
|
$ 112.29 | |||||
| 2 | WP74007415 | Cap, Burner Lf,rr (black) (Replaces: 7504P137-60) |
|
$ 87.35 | |||||
| 2 | WP74007421 | Cap, Burner (lf)(rr) (gray) (Replaces: 7504P140-60) |
|
$ 81.71 | |||||
| 2 | 7504P143-60 | Cap, Burner Lf,rr (taupe) |
|
- | |||||
| 2 | WP3191898 | Cap, Burner Left Rear (black) (Replaces: 7504P136-60) |
|
$ 60.86 | |||||
| 2 | 7504P139-60 | Cap, Burner Left Rear (gray) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | WPW10406243 | Burner (left Rear) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 4 | WPW10406283 | Burner (lf,rr) (Replaces: 7540P043-60) |
|
$ 66.87 | |||||
| 4 | WPW10406878 | Burner (rf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 5 | 2001F284-81 | Cooktop (white) |
|
- | |||||
| 5 | 2001F284-09 | Cooktop (black) |
|
- | |||||
| 5 | 2001F284-88 | Cooktop (bisque) |
|
- | |||||
| 6 | 2616N379-09 | Panel, Manifold (black) |
|
- | |||||
| 6 | 2616N379-81 | Panel, Manifold (white) |
|
- | |||||
| 6 | 3616N379-88 | Panel, Manifold (bisque) |
|
- | |||||
| 7 | 7733P416-60 | Knob, Control (black) |
|
$ 19.41 | |||||
| 7 | 7733P417-60 | Knob, Control (white) |
|
- | |||||
| 7 | 7733P418-60 | Knob, Control (bisque) |
|
$ 24.51 | |||||
| 8 | 74009120 | Grate, Burner (black) (Replaces: 7518P193-60) |
|
$ 238.73 | |||||
| 8 | 7518P194-60 | Grate, Burner (grey) |
|
- | |||||
| 8 | 7518P195-60 | Grate, Burner (taupe) |
|
- | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 |
