02 - Control Panel
03 - Broiler Parts
04 - Door Parts
05 - Cooktop Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

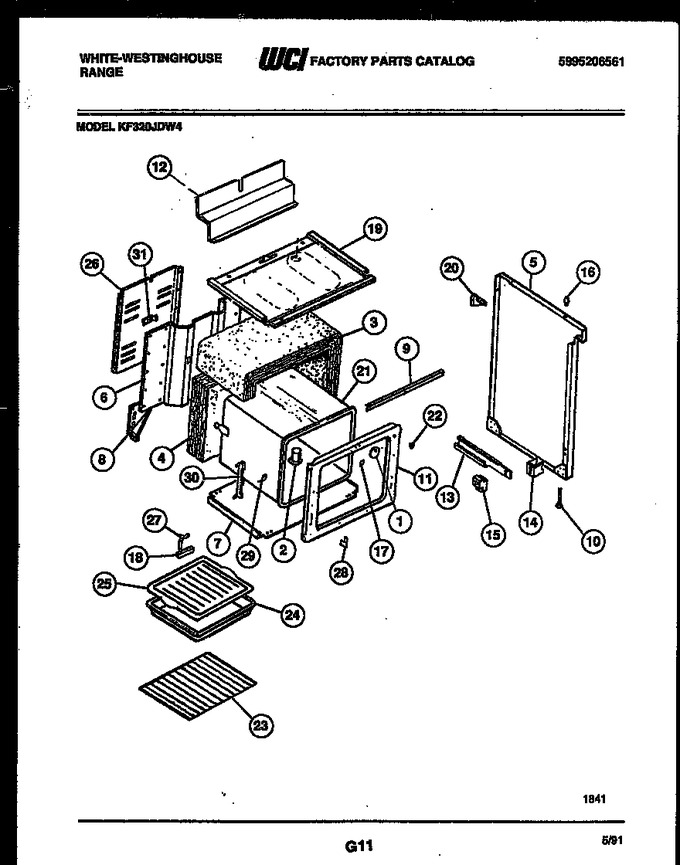

| 1 | 3017576 | Cover - Oven Lt Hole |
|
- | |||||
| 2 | 08012541 | Tube-oven Vent |
|
- | |||||
| 3 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 4 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 5 | 3051719 | Panel-side Rh Almd |
|
- | |||||
| 6 | 3205757 | Back, Range |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 9 | 5303207391 | Support-subtop |
|
- | |||||
| 10 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 11 | 5303207446 | Frame-front |
|
- | |||||
| 12 | 3206095 | Shield-wire |
|
- | |||||
| 13 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 13 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 14 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 15 | 3051654 | Guide, Drawer Fr (2) |
|
- | |||||
| 16 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 17 | 3202082 | Cover Seam |
|
- | |||||
| 18 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | 08012542 | Panel - Subtop |
|
- | |||||
| 20 | 3204821 | Gusset-backgrd (2) |
|
- | |||||
| 21 | 3206079 | Liner - Oven |
|
- | |||||
| 22 | 3051784 | Button - Plug |
|
- | |||||
| 23 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 24 | 3205539 | Pan, Broiler |
|
- | |||||
| 25 | 3205234 | Grill - Broiler |
|
- | |||||
| 26 | 5303051856 | Wire, Cover |
|
- | |||||
| 27 | 5301145190 | Strap, Ground |
|
- | |||||
| 28 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 29 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 30 | 3201631 | Hinge - Assy (2) |
|
$ 58.22 | |||||
| 31 | 3016281 | Spring, Oven (2) |
|
- | |||||
| *46605 | 3016334 | Button-plug |
|
- | |||||
| *46605 | 191S021P21 | Wiring Diagram (not For Purchase.) |
|
- | |||||
| 27A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 30A | 5300009126 | Clip |
|
- | |||||
| 5A | 3051484 | Panel-side Lh Almd |
|
- | |||||
| 8A | 3017482 | Gusset-rear, Lh |
|
- |
