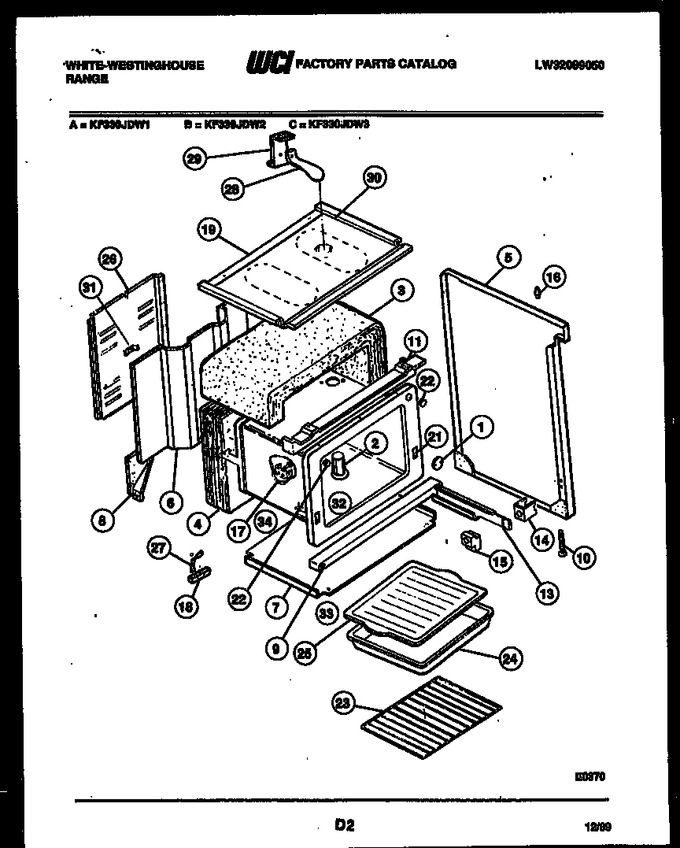

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017576		Cover - Oven Lt Hole		Appelez-nous	-
2	K005053701		Tube-oven Vent Lwr		Appelez-nous	-
3	3051521		Insulation - Oven Wrap		Appelez-nous	-
4	K001325625		Insulation-oven Back		Appelez-nous	-
5	08012529		Panel-side Rh Almd		Appelez-nous	-
6	3017575		Back - Range		Appelez-nous	-
7	3017394		Panel - Bottom		Appelez-nous	-
8	K005285802		Gusset-rear-rh		Appelez-nous	-
9	3017484		Channel-oven Sprt.		Appelez-nous	-
10	K001322905		Screw-leveling (4)		Appelez-nous	-
11	K005009403		Channel-oven Sprt		Appelez-nous	-
13	08015746		Rail - Drawer Rh		Appelez-nous	-
14	K001324860		Spacer-drwr Rail (2)		Appelez-nous	-
15	K001315216		Guide-drwr Front (2)		Appelez-nous	-
16	K5106901		Bumper-cooktop (4)		Appelez-nous	-
17	3051552		Bracket - Thermo Bulb		Appelez-nous	-
18	06563359		Terminal Block		Appelez-nous	-
19	K005025704		Panel, Subtop		Appelez-nous	-
21	K001325537		Liner-oven		Appelez-nous	-
22	3051784		Button - Plug		Appelez-nous	-
23	3131973		Rack, Oven (2)		Appelez-nous	-
24	K001317973		Pan-broiler		Appelez-nous	-
25	K001317972		Insert-broiler		Appelez-nous	-
26	3051856		Wire Cover		Appelez-nous	-
27	K001145190		Strap-ground		Appelez-nous	-
28	K005130601		Tube-vent (upper)		Appelez-nous	-
29	K005130701		Bracket-vent Tube		Appelez-nous	-
30	K005303702		Channel-subtop		Appelez-nous	-
13A	K005269902		Rail-drawer Lh		Appelez-nous	-
5A	08012530		Panel-side Lh Almd		Appelez-nous	-
8A	K001325113		Gusset-rear Lh		Appelez-nous	-
