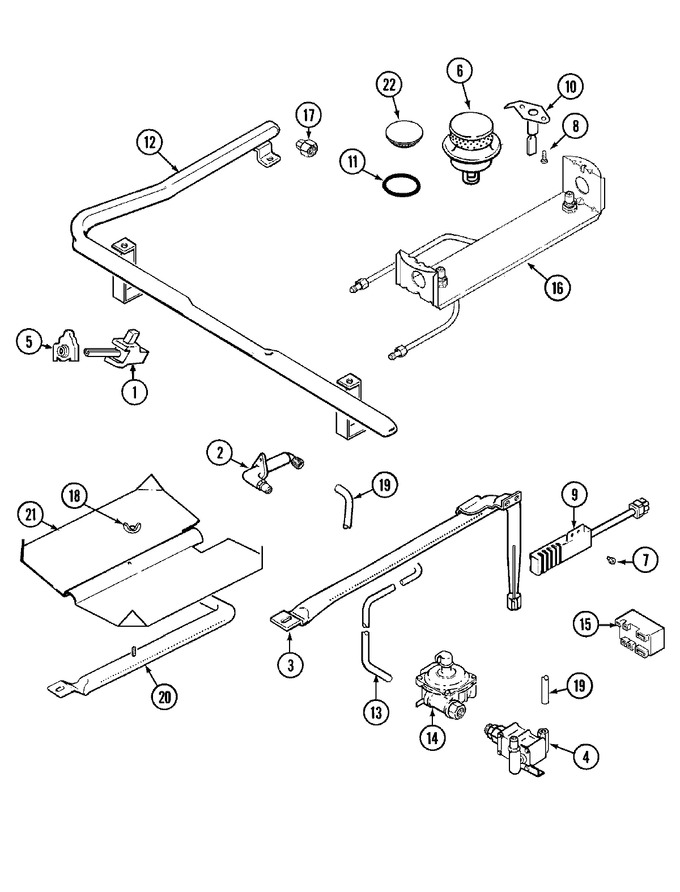

04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P044-60 | Screw, Valve | 10 |
|
- | ||||
| 1 | 74003924 | Valve, Burner | 20 |
|
$ 115.08 | ||||
| 1 | 74004303 | Valve, Top Burner | 20 |
|
- | ||||
| 1 | 74002433 | Screw, Valve | 20 |
|
- | ||||
| 1 | 71003231 | Screw, Valve | 20 |
|
- | ||||
| 1 | 7502P251-60 | Valve, Top Burner | 10 |
|
- | ||||
| 2 | 7507P088-60 | Fitting, Broil Burner | 10 |
|
- | ||||
| 2 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 10 |
|
Immediately | $ 7.69 | |||
| 2 | 3605F186-45 | Plate, Fitting | 10 |
|
- | ||||
| 2 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 3 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 3403D043-45 | Burner, Bake | 10 |
|
- | ||||
| 3 | 3807F446-45 | Support, Burner | 10 |
|
- | ||||
| 4 | WP74006427 | Valve, Oven (Replaces: 7501P097-60) | 10 |
|
$ 313.44 | ||||
| 5 | WP7403P279-60 | Switch, Igniter (Replaces: 7403P279-60) | 10 |
|
$ 91.89 | ||||
| 5 | WP7403P279-60 | Switch, Igniter (Replaces: 7403P279-60) | 20 |
|
$ 91.89 | ||||
| 5 | 74002533 | Switch, Igniter | 20 |
|
- | ||||
| 6 | WP3412D024-09 | Burner, Sealed (blk) (Replaces: 74003963) | 13 |
|
Immediately | $ 92.69 | |||
| 6 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 10 |
|
Immediately | $ 92.69 | |||
| 7 | WP3351614 | Screw (Replaces: 7101P328-60) | 10 |
|
Immediately | $ 6.26 | |||
| 8 | WP59002061 | Screw (Replaces: 7101P315-60) | 10 |
|
$ 6.98 | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 10 |
|
Immediately | $ 60.44 | |||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.6) | 10 |
|
- | ||||
| 10 | 74004053 | Igniter, Top Burner | 13 |
|
Immediately | $ 24.25 | |||
| 11 | 74002745 | Gasket, Burner | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005681 | Pipe, Manifold | 20 |
|
- | ||||
| 12 | 74003504 | Pipe, Manifold | 10 |
|
- | ||||
| 13 | 1555258K | 3/8`` Nut & Ferrule | 10 |
|
- | ||||
| 13 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 10 |
|
- | ||||
| 14 | WP74006429 | Regulator, Pressure (Replaces: 7510P067-60) | 10 |
|
$ 282.77 | ||||
| 15 | 12001596 | Module, Spark (Replaces: 74003288) | 10 |
|
Immediately | $ 85.93 | |||
| 16 | 74003506 | Fitting Assy., Orifice (lt) | 10 |
|
- | ||||
| 16 | WP5787M052-60 | Fitting Assy., Orifice (rt) (Replaces: 74003505) | 10 |
|
$ 220.54 | ||||
| 17 | 7103P121-60 | Loxit Nut | 10 |
|
- | ||||
| 18 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 19 | 1555258K | 3/8`` Nut & Ferrule | 10 |
|
- | ||||
| 19 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 10 |
|
- | ||||
| 20 | 3403D024-45 | Burner, Broil | 10 |
|
- | ||||
| 20 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 21 | 3601F217-47 | Baffle, Broil Burner | 10 |
|
- | ||||
| 22 | WP3403F088-00 | Cap, Burner (blk) (Replaces: 71003053) | 10 |
|
$ 68.15 | ||||
| 23 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 23 | 5140D035-60 | Wires, Igniter | 10 |
|
- | ||||
| 23 | 5120D019-60 | Harness, Spark Module/top | 10 |
|
- | ||||
| 24 | 12002441 | Kit, Lp Conversion | 10 |
|
$ 76.05 |
