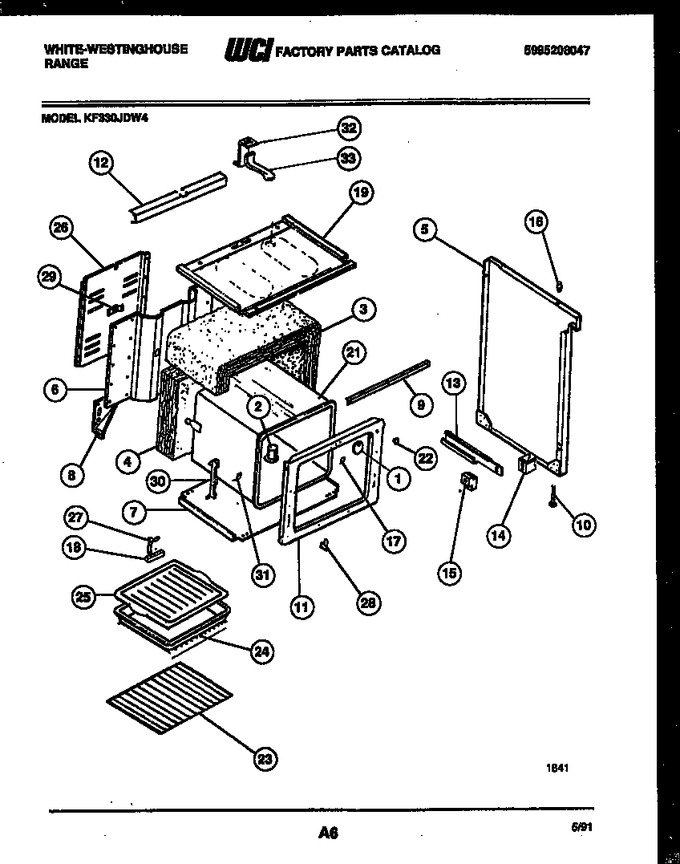

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017576 | Cover - Oven It Hole |
|
- | |||||
| 2 | 5303206498 | Tube-oven Vent Lwr |
|
- | |||||
| 3 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 4 | 5303274967 | Insulation-oven Back |
|
- | |||||
| 5 | 5308012529 | Pnl-side Rh Almd |
|
- | |||||
| 6 | 3205757 | Back, Range |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 9 | 5303207391 | Support-subtop |
|
- | |||||
| 10 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 11 | 5303207446 | Front - Oven |
|
- | |||||
| 12 | 3205257 | Channel, Sub Top |
|
- | |||||
| 13 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 14 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 15 | 3051654 | Guide - Drwr Front (2) |
|
- | |||||
| 16 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 17 | 3202082 | Cover-drum Seam |
|
- | |||||
| 18 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | K005025704 | Panel, Subtop |
|
- | |||||
| 21 | 3206079 | Liner - Oven |
|
- | |||||
| 22 | 3204817 | Button-plug |
|
- | |||||
| 23 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 24 | 3205539 | Pan, Broiler |
|
- | |||||
| 25 | 3205234 | Insert-broil |
|
- | |||||
| 26 | 5303051856 | Cover, Wire |
|
- | |||||
| 27 | 5301145190 | Strap, Ground |
|
- | |||||
| 28 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 29 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 30 | 3201631 | Channel-hinge (2) |
|
$ 58.22 | |||||
| 31 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 32 | 3051656 | Brkt-vent Tube |
|
- | |||||
| 33 | 5303209018 | Tube-vent-upper |
|
- | |||||
| *47610 | 5300009126 | Clip |
|
- | |||||
| *47610 | 3934063 | Anti-tip Kit |
|
- | |||||
| *47610 | 19100210022 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| 13A | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 5A | 5308012530 | Pnl - Side Lh (almd) |
|
- | |||||
| 8A | 3017482 | Gusset-rear, Lh |
|
- |
