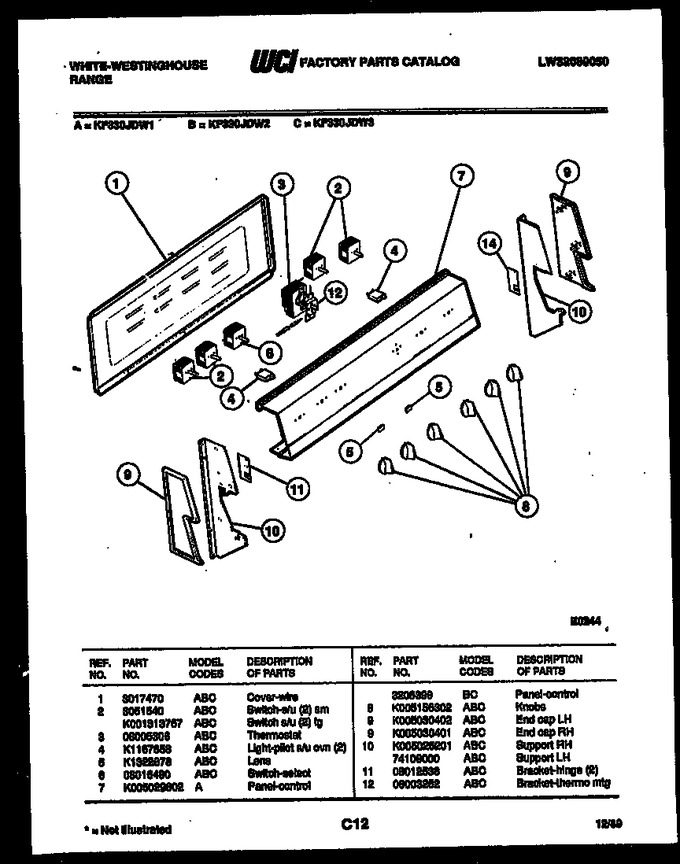

02 - Control Panel
03 - Broiler Parts
04 - Door Parts
05 - Cooktop Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017470 | Cover - Wire |
|
- | |||||
| 2 | 3051540 | Switch-s/u (2) Sm |
|
- | |||||
| 3 | 08005306 | Thermostat |
|
- | |||||
| 4 | K1167858 | Light-pilot S/u Ovn (2) |
|
- | |||||
| 5 | K1322678 | Lens |
|
- | |||||
| 6 | 08016480 | Switch - Select |
|
- | |||||
| 7 | K005029602 | Panel-control |
|
- | |||||
| 8 | K005156302 | Knobs |
|
- | |||||
| 9 | K005030401 | End Cap Rh |
|
- | |||||
| 9 | K005030402 | End Cap Lh |
|
- | |||||
| 10 | K005025201 | Support Rh |
|
- | |||||
| 11 | 08012538 | Bracket - Hinge (2) |
|
- | |||||
| 12 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 10A | 74109000 | Support Lh |
|
- | |||||
| 2A | K001313767 | Switch S/u (2) Lg |
|
- |
