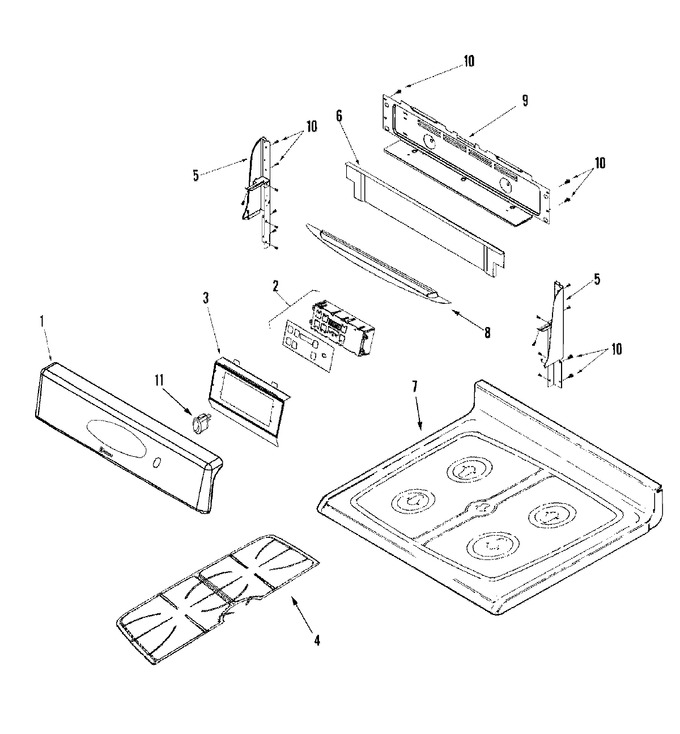

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009108 | Panel, Backguard (blk) | 10 |
|
- | ||||
| 2 | 74009227 | Clock/overlay (blk) | 12 |
|
$ 330.44 | ||||
| 2 | 74008626 | Clock/overlay (blk) | 10 |
|
- | ||||
| 3 | W10124350 | Not Required Part Or See Note Not Required-brckt On Panel | 10 |
|
- | ||||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 4 | 74009085 | Grate, Double (blk) | 10 |
|
$ 134.30 | ||||
| 4 | W10841140 | Sealer, Rtv Clear (Replaces: M0275597) | 10 |
|
Immediately | $ 24.92 | |||
| 4 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 5 | 74009022 | End Cap (rt-blk) | 10 |
|
- | ||||
| 5 | 74009023 | End Cap (lt-blk) | 10 |
|
$ 31.24 | ||||
| 6 | 74008725 | Shield, Vent (blk) | 10 |
|
- | ||||
| 6 | 74009205 | Shield, Vent (blk) | 13 |
|
- | ||||
| 7 | 74009086 | Top, Main 5 Burner (blk) | 10 |
|
- | ||||
| 8 | 74003640 | Screw, Shoulder | 10 |
|
$ 5.83 | ||||
| 8 | 74009202 | Shield, Heat Visor (blk) | 13 |
|
- | ||||
| 8 | 74008891 | Shield, Heat Visor (blk) | 10 |
|
- | ||||
| 9 | 74009093 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74009653 | Cover, Broil Access Fitting | 10 |
|
- | ||||
| 9 | 74009053 | Cover, Backguard Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 7403P985-60 | Switch, Rocker (blk) (Replaces: 74008937) | 10 |
|
$ 82.20 |
