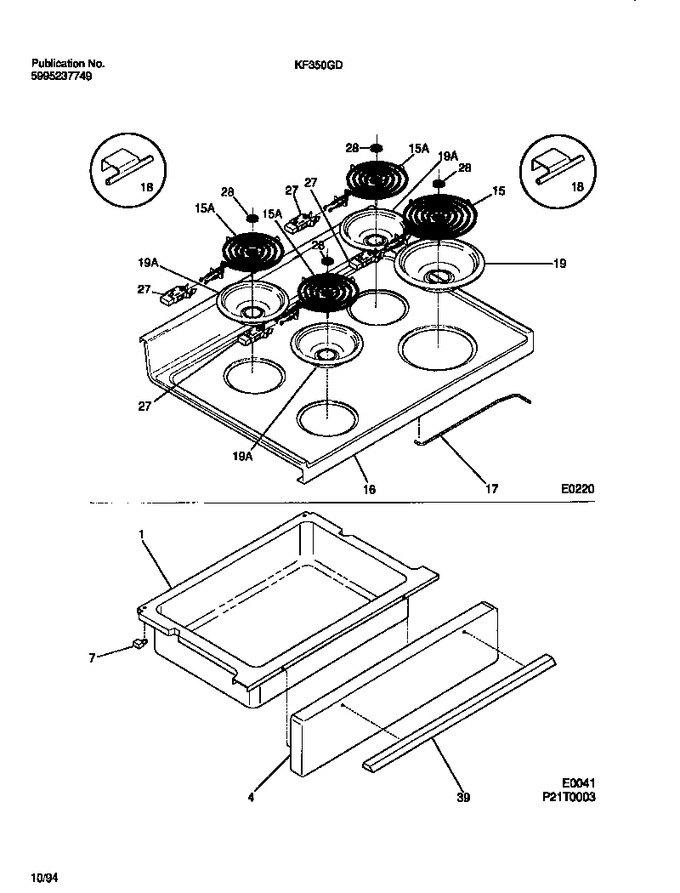

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308011051		Drawer-utility		Appelez-nous	-
4	5301325100		Panel-drawer, Almond		Appelez-nous	-
7	5303209487		Glide-drawer, Rear		Appelez-nous	-
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
16	5303292690		Main Top, Almond		Appelez-nous	-
17	5303211119		Rod-maintop Support, Rh		Appelez-nous	-
18	08012537		Hinge Pin		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
15A	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
17A	5303211120		Rod-maintop Support, Lh, (non-illustrated)		Appelez-nous	-
19A	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
1A	3051050		Screw-shoulder, (non-illustrated)				$ 12.29
