02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

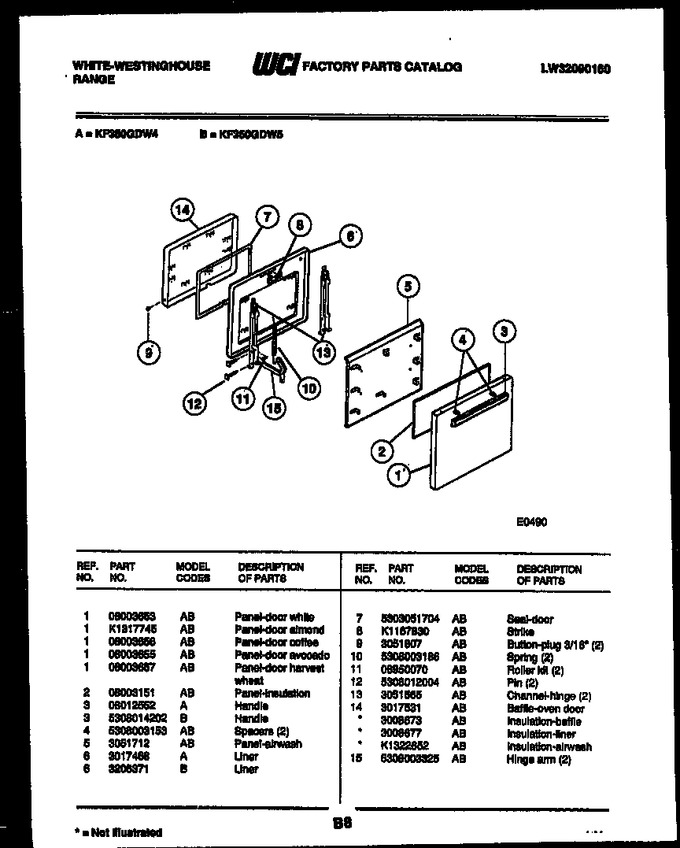

| 1 | 08003656 | Panel-door Coffee |
|
- | |||||
| 2 | 08003151 | Panel-insulation |
|
- | |||||
| 3 | 08012552 | Handle |
|
- | |||||
| 4 | 5308003153 | Spacers (2) |
|
- | |||||
| 5 | 3051712 | Panel, Airwash |
|
- | |||||
| 6 | 3017468 | Liner |
|
- | |||||
| 7 | 5303051704 | Seal, Door |
|
$ 388.08 | |||||
| 8 | K1167830 | Strike |
|
- | |||||
| 9 | 3051807 | Button-plug 3/16`` (2) |
|
- | |||||
| 10 | 5308003186 | Spring (2) |
|
- | |||||
| 11 | 08950070 | Roller Kit (2) |
|
- | |||||
| 12 | 5308012004 | Pin (2) |
|
$ 8.29 | |||||
| 13 | 3051565 | Channel Hinge (2) |
|
- | |||||
| 14 | 3017531 | Baffle-oven Door |
|
- | |||||
| 15 | 5308003325 | Hinge Arm (2) |
|
- | |||||
| 14A | 3008673 | Insulation-baffle (non-illustrated) |
|
- | |||||
| 14B | 3008677 | Insulation-liner (non-illustrated) |
|
- | |||||
| 14C | K1322652 | Insulation-airwash (non-illustrated) |
|
- |
