01 - Body
02 - Control Panel
03 - Door/warming Drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

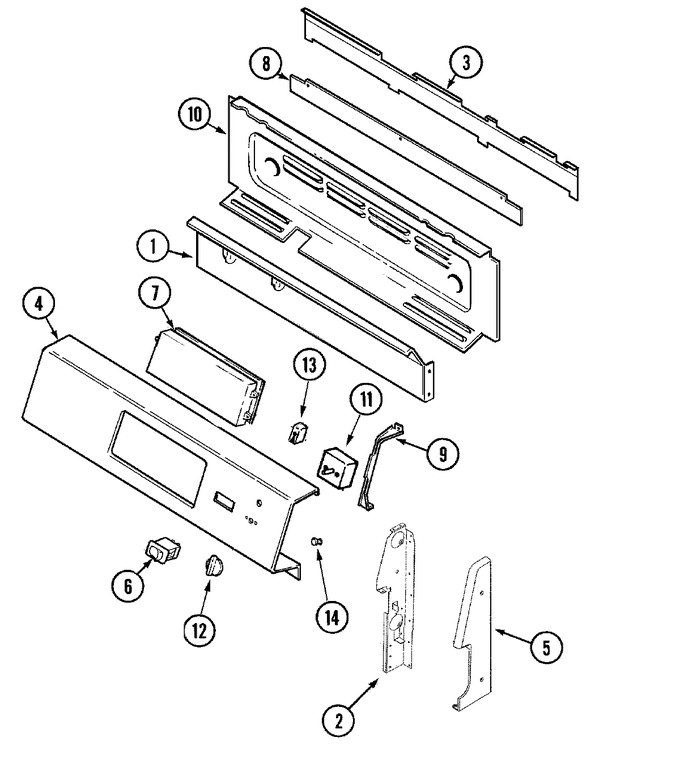

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 2 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 3 | 74006376 | Extension, Control Panel | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74006680 | Panel, Control (blk) | 10 |
|
- | ||||
| 5 | 74003606 | End Cap, Control Pnl (lt-blk) | 10 |
|
- | ||||
| 5 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 5 | 74002432 | Screw (1 3/16``-blk) | 10 |
|
- | ||||
| 5 | 74003605 | End Cap, Control Pnl (rt-blk) | 10 |
|
- | ||||
| 6 | 74003363 | Switch, Rocker (blk) | 10 |
|
- | ||||
| 7 | 74006203 | Clock W/overlay (blk) | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 8 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74003627 | Bracket, Clock | 10 |
|
- | ||||
| 9 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 10 | 74004963 | Housing, Control Panel | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74006536 | Cover, Wire (2 5/8`` X 2) | 10 |
|
- | ||||
| 11 | 74006589 | Switch, Infinite (warming) | 10 |
|
- | ||||
| 12 | 74006578 | Knob, Warming Drawer (blk) | 10 |
|
- | ||||
| 13 | 71003194 | Light, Indicator (125v) | 10 |
|
- | ||||
| 14 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 15 | 74003992 | Harness, Sensor/lock | 10 |
|
- | ||||
| 15 | 74006457 | Harness, Control Panel | 10 |
|
- | ||||
| 15 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 16 | 74006305 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 18 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
