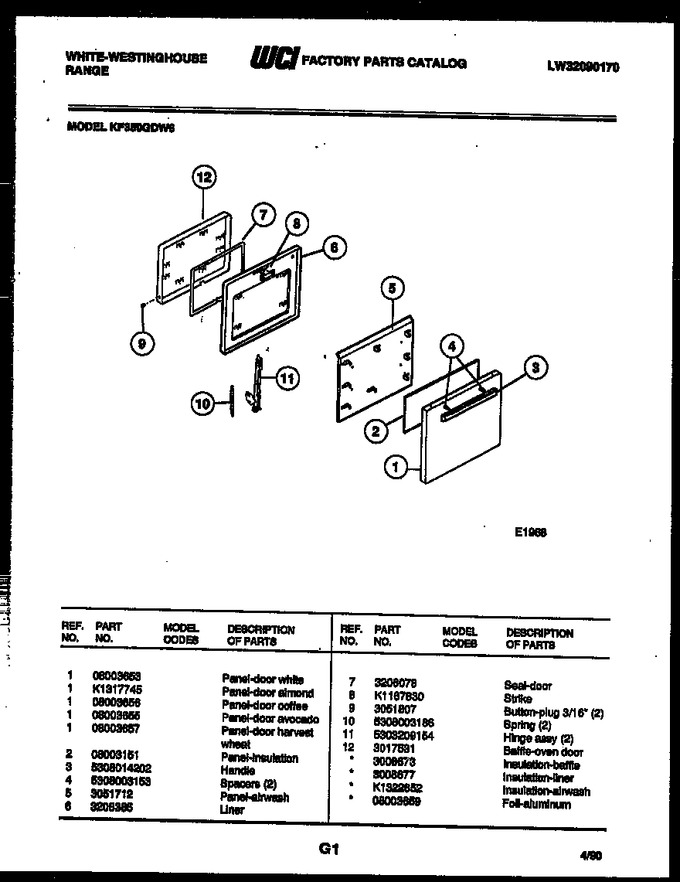

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08003656 | Panel-door Coffee |
|
- | |||||
| 2 | 08003151 | Panel-insulation |
|
- | |||||
| 3 | 5308014202 | Handle |
|
- | |||||
| 4 | 5308003153 | Spacers (2) |
|
- | |||||
| 5 | 3051712 | Panel, Airwash |
|
- | |||||
| 6 | 3206385 | Liner |
|
- | |||||
| 7 | 3206078 | Seal-door |
|
- | |||||
| 8 | K1167830 | Strike |
|
- | |||||
| 9 | 3051807 | Button-plug 3/16`` (2) |
|
- | |||||
| 10 | 5308003186 | Spring (2) |
|
- | |||||
| 11 | 5303209154 | Hinge Assy (2) |
|
- | |||||
| 12 | 3017531 | Baffle-oven Door |
|
- | |||||
| *29658 | 3008673 | Insulation, Baffle |
|
- | |||||
| *29658 | 08003659 | Foil - Aluminum |
|
- | |||||
| *29658 | 3008677 | Insulation, Liner |
|
- | |||||
| *29658 | K1322652 | Insulation, Airwash |
|
- |
