View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

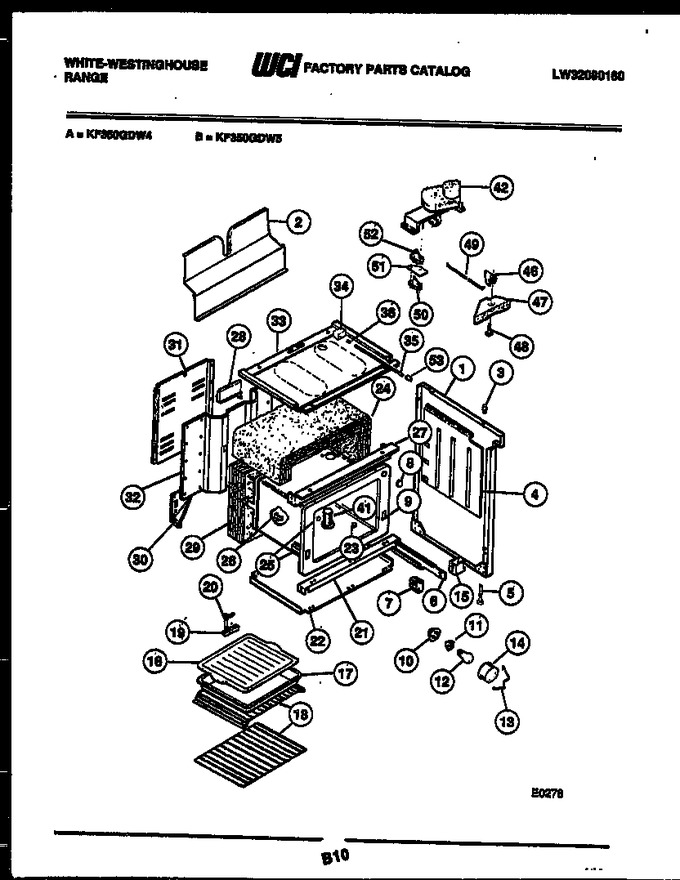

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5305024609 | Side Panel Rh-wheat |
|
- | |||||
| 1 | 5305024610 | Side Panel Lh-wheat |
|
- | |||||
| 2 | 3206095 | Shield-wire |
|
- | |||||
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveler (4) |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 6 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 7 | 3051654 | Guide-drawer Frnt (2) |
|
- | |||||
| 8 | 3204817 | Button-plug |
|
- | |||||
| 9 | 3204607 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle |
|
- | |||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Insert-broiler |
|
- | |||||
| 17 | 3206373 | Pan-broiler |
|
- | |||||
| 18 | 5303131973 | Rack, Regular |
|
- | |||||
| 18 | 08014219 | Rack-offset |
|
- | |||||
| 19 | 5303051098 | Terminal Block |
|
- | |||||
| 20 | K1145190 | Strap-ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 23 | 3204817 | Plug-button 3/4`` |
|
- | |||||
| 24 | 5303051630 | Insulation, Oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug-button Thermo |
|
- | |||||
| 26 | K001311369 | Bracket-thermo Bulb |
|
- | |||||
| 27 | 5303208390 | Channel-oven Support Top |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 30 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 5303051856 | Cover, Wire |
|
- | |||||
| 32 | 3017535 | Back - Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 35 | 08007445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 41 | 08012574 | Tube-oven Vent |
|
- | |||||
| 42 | 5308015743 | Latch, Motor |
|
$ 211.92 | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 5303051740 | Switch-lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 5301176190 | Switch-upper |
|
- | |||||
| 53 | 3051251 | Cover, Rod End |
|
- | |||||
| *71477 | 3934063 | Anti-tip Kit |
|
- |
