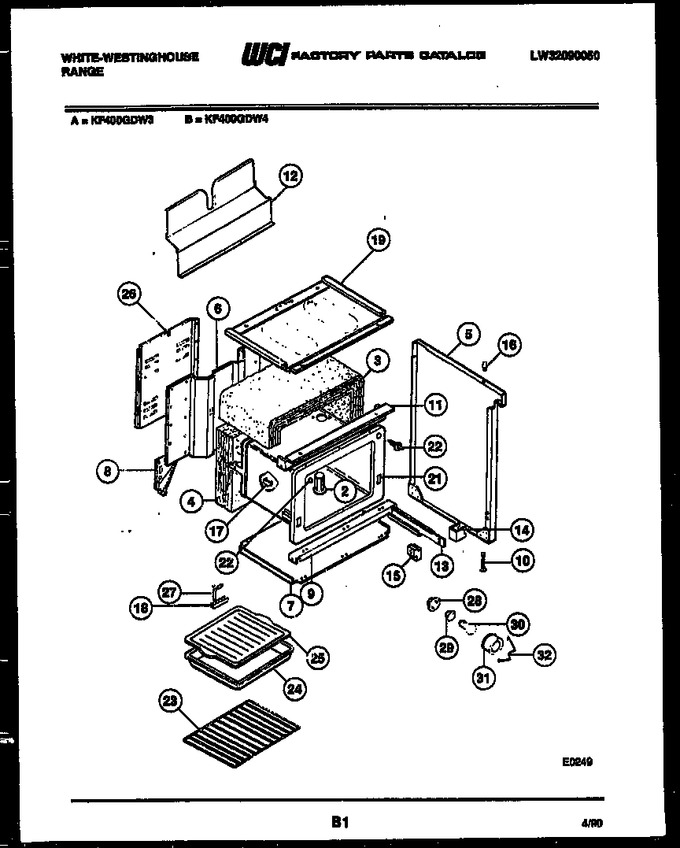

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	08012541		Tube-oven Vent		Appelez-nous	-
3	3051521		Insulation - Oven Wrap		Appelez-nous	-
4	5303051630		Insulation-oven Block		Appelez-nous	-
5	5305024609		Panel-side Rh Wheat		Appelez-nous	-
6	K005275802		Back - Range		Appelez-nous	-
7	K005276504		Panel-bottom		Appelez-nous	-
8	K005275802		Gusset-rear Rh		Appelez-nous	-
9	3051638		Channel-oven Supt		Appelez-nous	-
10	5303205540		Screw-leveling (4)		Appelez-nous	-
11	08011072		Channel-oven Supt		Appelez-nous	-
12	K005029503		Shield - Wire		Appelez-nous	-
13	5308015746		Rail-drawer Rh		Appelez-nous	-
14	3051653		Spacer, Drawer Rail (2)		Appelez-nous	-
15	3051654		Guide-drawer Frnt (2)		Appelez-nous	-
16	5308003107		Bumper, Cooktop (4)		Appelez-nous	-
17	3051552		Bracket-thermo Bulb (2)		Appelez-nous	-
18	5304409888		Block, Terminal   (Replaces: 5306563359)			Immediately	$ 26.69
19	08012542		Panel - Subtop		Appelez-nous	-
21	3204607		Liner, Oven		Appelez-nous	-
22	5301314211		Switch-oven Light				$ 95.29
23	5303131973		Rack, Oven		Appelez-nous	-
24	3200723		Pan, Broiler		Appelez-nous	-
25	3203164		Grille - Broiler		Appelez-nous	-
26	5303051856		Wire, Cover		Appelez-nous	-
27	K1145190		Strap-ground		Appelez-nous	-
28	3051511		Cup, Oven Light				$ 60.22
29	316116400		Receptacle-light   (Replaces: 5308011085)			Immediately	$ 56.10
30	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
31	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
32	5303205904		Retainer-lens				$ 7.67
13A	3051652		Rail, Drawer Lh		Appelez-nous	-
5A	5305024610		Panel-side Lh Wheat		Appelez-nous	-
8A	K005285804		Gusset-rear-lh		Appelez-nous	-
