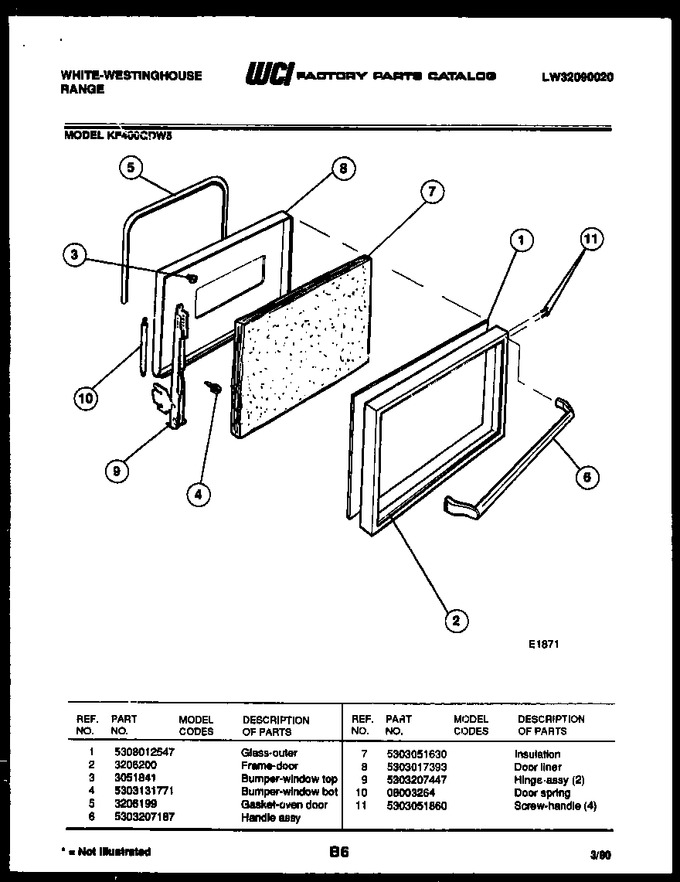

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012547 | Glass - Outer |
|
- | |||||
| 2 | 3206200 | Frame-door |
|
- | |||||
| 3 | 3051841 | Bumper-window Top |
|
- | |||||
| 4 | 5303131771 | Bumper-window Bot. |
|
- | |||||
| 5 | 3206199 | Gasket-oven Door |
|
- | |||||
| 6 | 5303207187 | Handle Assy |
|
- | |||||
| 7 | 5303051630 | Insulation |
|
- | |||||
| 8 | 5303017393 | Door Liner |
|
- | |||||
| 9 | 5303207447 | Hinge-assy (2) |
|
- | |||||
| 10 | 08003264 | Spring-oven Door |
|
- | |||||
| 11 | 5303051860 | Screw, Handle (4) |
|
- |
