SELECT A DIAGRAM

01 - Body

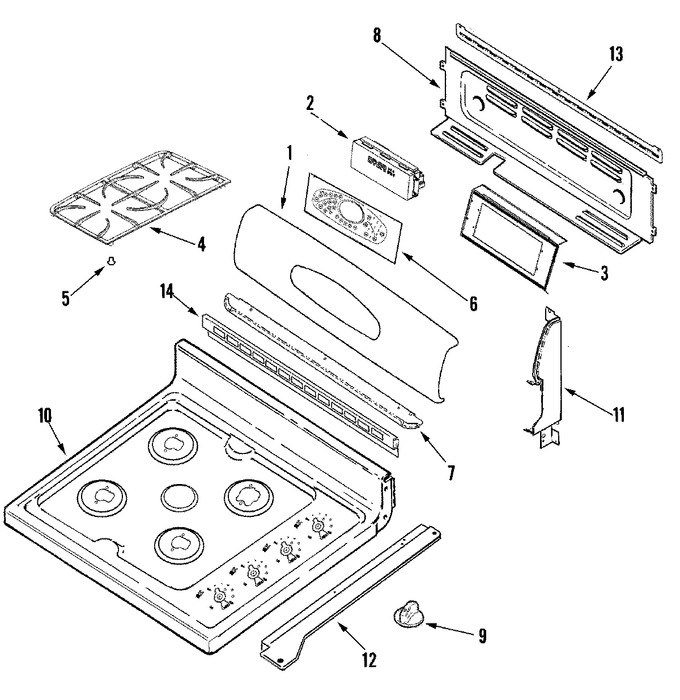

02 - Control Panel/top Assembly


03 - Door (lower-stl)


04 - Door (upper-stl)


05 - Gas Controls


06 - Oven


07 - Supplemental Information


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010072		Panel, Control (stl)	10			$ 117.23
2	WPW10166969		Control, H3 (gas)   (Replaces: 74010580)	10		Immediately	$ 374.09
3	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
3	74009052		Bracket, Clock	10	Appelez-nous	-
4	74010075		Grate (blk)	10	Appelez-nous	-
5	W10919249		Bumper, Grate Bottom   (Replaces: 74007356)	10		Immediately	$ 11.30
6	7728P497-60		Overlay (blk)	10	Appelez-nous	-
7	74009800		Shield, Vent (blk)	10	Appelez-nous	-
7	74003975		Screw (8abx3/8-blk)	10			$ 12.02
8	74011109		Housing, Control Panel	10	Appelez-nous	-
8	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
9	74010079		Knob (blk)	10			$ 19.89
9	WP74005934		Grommet   (Replaces: 74005934)	10			$ 7.66
10	2001N298-09		Top, Main (blk)	10	Appelez-nous	-
11	74010201		Support, Backguard (rt-blk)	10	Appelez-nous	-
11	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
11	74010202		Support, Backguard (lt-blk)	10	Appelez-nous	-
11	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
12	74007366		Box, Burner (lt)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74007367		Box, Burner (rt)	10	Appelez-nous	-
12	74007369		Lock, Purse	10	Appelez-nous	-
13	74010084		Shield, Sight	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W11233072		Screw   (Replaces: 7101P147-60)	10		Immediately	$ 12.62
14	74009797		Trim, Vent (blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
