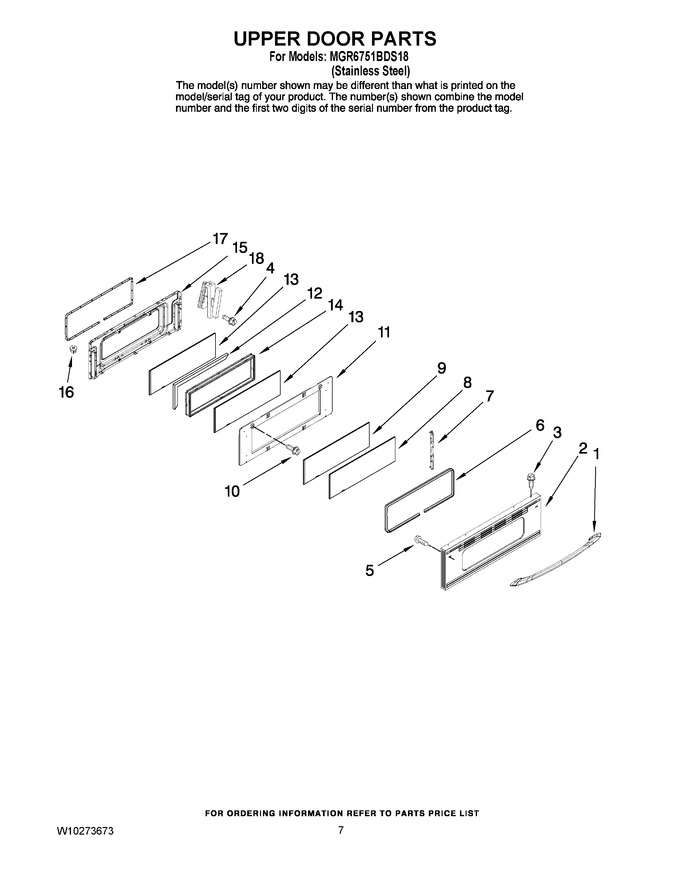

05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P526-60		Handle, Door				$ 129.23
2	7760P153-60		Panel, Door		Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
4	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
5	7101P668-60		Screw		Appelez-nous	-
6	WP7201P091-60		Gasket, Window   (Replaces: 7201P091-60)				$ 137.97
7	3804F184-45		Retainer, Gass Support (2)		Appelez-nous	-
8	7902P755-60		Glass, Outer Door		Appelez-nous	-
9	7902P542-60		Glass, Inner Door		Appelez-nous	-
10	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
11	3601F354-45		Baffle, Door				$ 66.15
12	7002P488-60		Insulation (2)		Appelez-nous	-
13	7902P521-60		Glass, Inner (2)		Appelez-nous	-
14	7907P034-60		Frame, Glass		Appelez-nous	-
15	2402W248-19		Liner, Door		Appelez-nous	-
16	WP74001574		Nut, Snap (2)   (Replaces: 7103P141-60)			Immediately	$ 9.91
17	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
18	7106P148-60		Hinge, Door (2)		Appelez-nous	-
