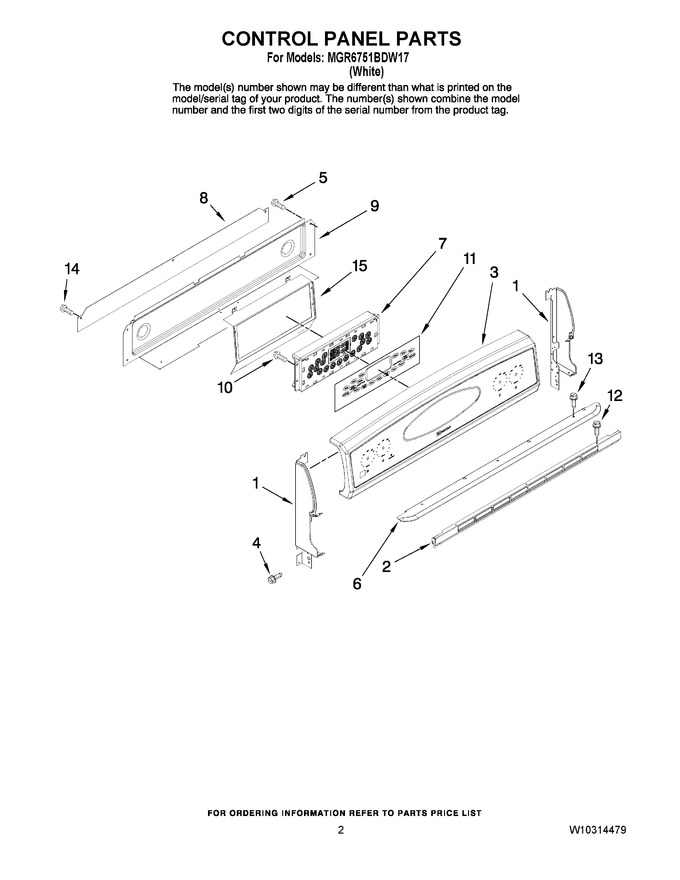

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3807F734-71		Support, Backguard (right)				$ 38.79
1	3807F733-71		Support, Backguard (left)				$ 9.32
2	3608F121-37		Trim, Vent				$ 62.80
3	2602N352-81		Panel, Control (incl. Overlay)		Appelez-nous	-
4	7101P663-60		Screw		Appelez-nous	-
5	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
6	3604F398-81		Shield, Vent				$ 13.20
7	WPW10166969		Control, H3 (gas)   (Replaces: W10166969)			Immediately	$ 374.09
8	8036P025-60		Shield, Sight		Appelez-nous	-
9	4005F805-51		Cover, Rear Wire		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
11	7728P502-60		Overlay		Appelez-nous	-
12	7101P313-60		Screw, 8ab X 3/8		Appelez-nous	-
13	7101P609-60		Screw, 8ab		Appelez-nous	-
14	W11233072		Screw, 8b X 3/8   (Replaces: 7101P338-60)			Immediately	$ 12.62
15	3801F844-51		Bracket, Control Board				$ 34.28
