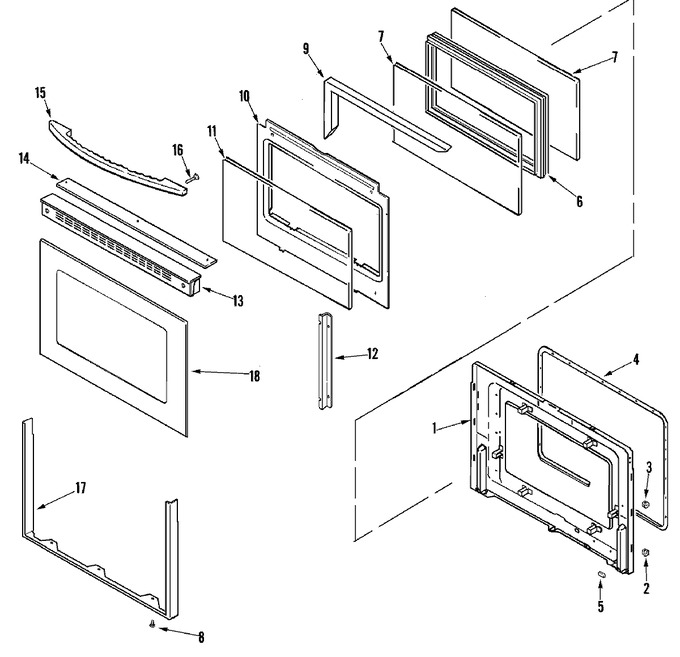

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003642		Lining, Door	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
2	74003643		Nut, Snap (square-blk)	10			$ 8.02
3	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
6	74003644		Frame, Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	74003647		Insulation, Oven Door	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74003648		Baffle, Door	10	Appelez-nous	-
11	74004857		Glass W/tape Assy	10			$ 123.25
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74003650		Retainer, Glass	10	Appelez-nous	-
13	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
13	74006634		Trim, Door Top (bsq)	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74005245		Screw (bsq)	10	Appelez-nous	-
14	74004978		Insert, Door Trim (bsq)	10	Appelez-nous	-
15	74006377		Handle, Door (bsq)	10			$ 33.33
16	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
17	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
17	74005162		Frame, Door (bsq)	10	Appelez-nous	-
18	74006637		Glass, Door (bsq)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
