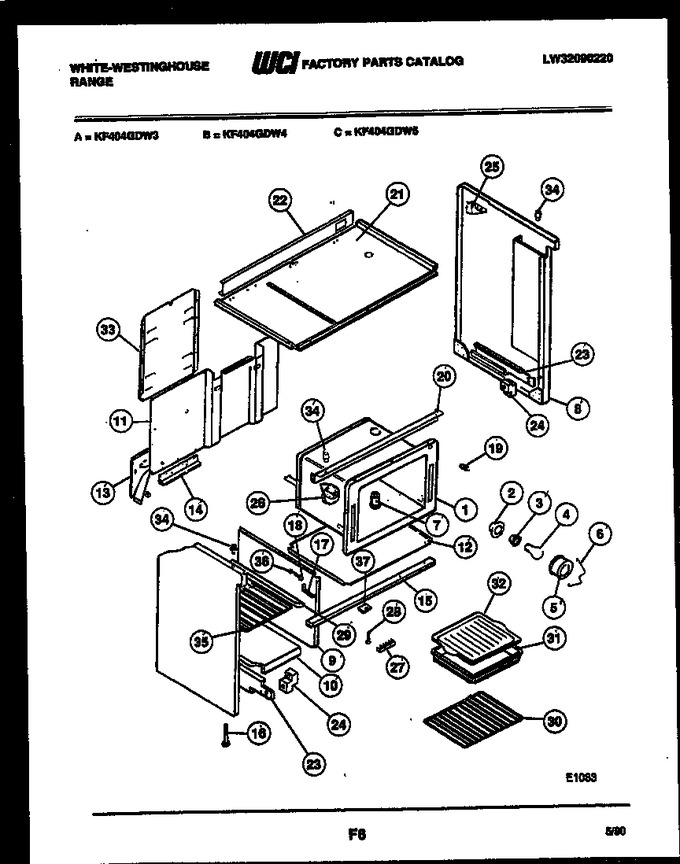

02 - Body Parts
03 - Control Panel
04 - Drawer And Panel Compartment Parts
05 - Door Parts
06 - Broiler Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204608 | Liner - Oven |
|
- | |||||
| 2 | 3204816 | Housing - Light |
|
- | |||||
| 3 | 316116400 | Receptacle - Oven Lt (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer - Wire Lens |
|
$ 7.67 | |||||
| 7 | K1311218 | Tube - Oven Vent |
|
- | |||||
| 8 | 3051719 | Pnl - Side Rh (almd) |
|
- | |||||
| 9 | K5157802 | Partition - Center |
|
- | |||||
| 10 | K1315129 | Bottom Complete |
|
- | |||||
| 11 | 3204827 | Back, Range |
|
- | |||||
| 12 | 3203573 | Panel - Bottom |
|
- | |||||
| 13 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 13 | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 14 | 08011953 | Support Gusset |
|
- | |||||
| 15 | 08011954 | Channel, Oven Support |
|
$ 47.60 | |||||
| 16 | 5303205540 | Screw - Levelling |
|
- | |||||
| 19 | 5301314211 | Switch - Ov Lt |
|
$ 95.29 | |||||
| 20 | 5303209334 | Bracket - Cooktop |
|
- | |||||
| 21 | 08011947 | Panel - Sub Top |
|
- | |||||
| 22 | 5303209319 | Shield - Wire |
|
- | |||||
| 25 | 3204821 | Gusset - Bkgrd (2) |
|
- | |||||
| 26 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 27 | 5303051098 | Terminal Block |
|
- | |||||
| 28 | K1145190 | Plate-grounding |
|
- | |||||
| 29 | 08011959 | Rail - Compl Rack (2) |
|
- | |||||
| 30 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 31 | 5303013568 | Pan-broiler |
|
- | |||||
| 32 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 33 | 3204650 | Panel - Wire Cover |
|
- | |||||
| 34 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 35 | 08011960 | Rack - Compartment |
|
- | |||||
| 37 | 3204318 | Plate-strike |
|
- | |||||
| 33A | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| 6A | 3051521 | Insulation - Wrap (non-illustrated) |
|
- | |||||
| 7A | 5303051630 | Insulation - Back (non-illustrated) |
|
- | |||||
| 8A | 5308012530 | Pnl - Side Lh (almd) |
|
- |
