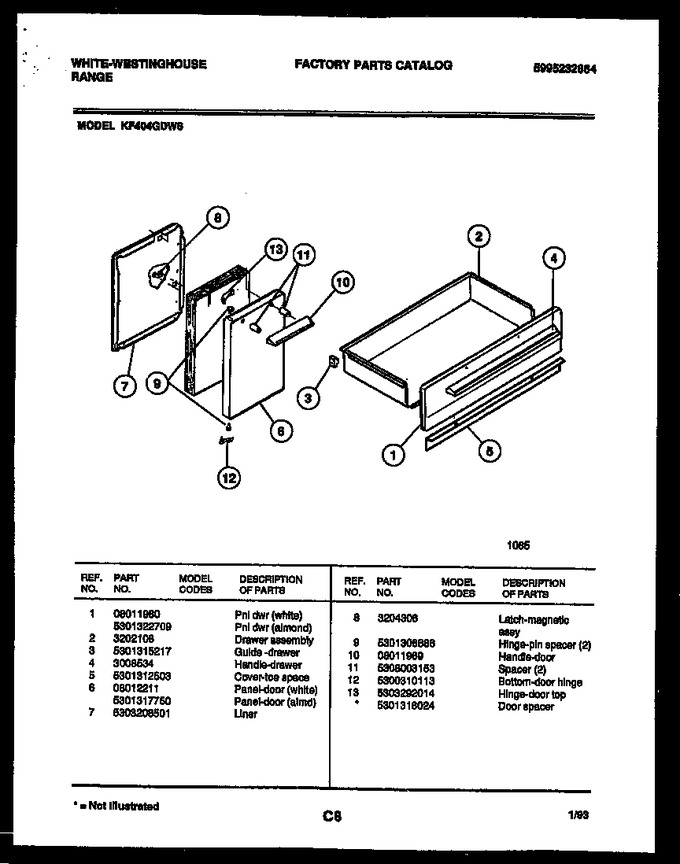

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5301322709 | Pnl Dwr (almond) |
|
- | |||||
| 2 | 3202108 | Drawer Assembly |
|
- | |||||
| 3 | 5301315217 | Guide-drawer |
|
- | |||||
| 4 | 3008534 | Handle, Drawer |
|
- | |||||
| 5 | 5301312503 | Cover-toe Space |
|
- | |||||
| 6 | 5301317750 | Panel-door (almd) |
|
- | |||||
| 7 | 5303208501 | Liner |
|
- | |||||
| 8 | 3204306 | Latch - Magnetic Assy |
|
- | |||||
| 9 | 5301306686 | Hinge-pin Spacer (2) |
|
- | |||||
| 10 | 08011969 | Handle, Door |
|
- | |||||
| 11 | 5308003153 | Spacer (2) |
|
- | |||||
| 12 | 5300310113 | Bottom-door Hinge |
|
- | |||||
| 13 | 5303292014 | Hinge-door Top |
|
- | |||||
| *72552 | 5301318024 | Door Spacer |
|
- |
